Calculate the Fresnel zone radius at any point along a wireless link path. Maintaining at least 60% clearance of the first Fresnel zone is critical for avoiding signal degradation on outdoor wireless bridge links and long-range WiFi connections.

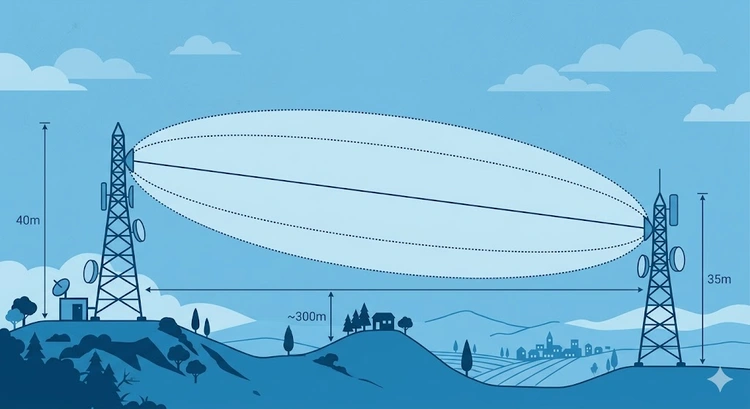

The Fresnel zone is an ellipsoidal region of space between a transmitter and receiver through which radio waves propagate. While we often think of radio signals traveling in a straight line, they actually spread out in a pattern described by Fresnel zones. The first Fresnel zone is the most important — obstructions within this zone cause significant signal degradation even when line-of-sight appears clear.
For outdoor wireless bridge links, maintaining clearance of the first Fresnel zone is just as important as having direct line-of-sight. A link that appears visually clear can still lose 6-20 dB if trees, buildings, or terrain intrude into the Fresnel zone. This tool helps you calculate the required clearance height at any point along your link path.
When an obstruction enters the first Fresnel zone, it causes signal diffraction and interference. The impact depends on how much of the zone is blocked:
| Clearance Level | Signal Impact | Link Quality | Recommendation |
|---|---|---|---|
| 100% clear | 0 dB additional loss | Optimal | Ideal for long-range links |
| 60% clear | ~0 dB additional loss | Excellent | Minimum target for reliable links |
| 40% clear | 3-6 dB additional loss | Acceptable | Workable but add fade margin |
| 20% clear | 6-12 dB additional loss | Poor | Unreliable, especially in rain |
| 0% (knife edge) | 6-16 dB additional loss | Very poor | Link may fail intermittently |
| Blocked | 16+ dB additional loss | Failed | Obstruction must be cleared |
Pro Tip: Always design for 60% first Fresnel zone clearance as your minimum. This accounts for tree growth, seasonal foliage changes, and antenna sway in wind. For critical links, aim for 80-100% clearance. If your terrain makes clearance impossible, increasing antenna gain can compensate for some diffraction loss, but it is always better to clear the zone when possible.
The radius of the nth Fresnel zone at any point along a path is calculated using:
r = √(n · λ · d1 · d2 / (d1 + d2))
Where:
r = Fresnel zone radius (meters)
n = Fresnel zone number (1, 2, 3...)
λ = wavelength (meters) = c / frequency
d1 = distance from transmitter to the point (meters)
d2 = distance from the point to receiver (meters)The maximum radius occurs at the midpoint of the link (where d1 = d2 = D/2), simplifying to: r = √(n · λ · D / 4). This is why the widest clearance is needed at the center of your wireless bridge link.
Lower frequencies produce larger Fresnel zones, requiring more clearance. This table shows first Fresnel zone radius at the midpoint for common link distances and the frequencies used in WiFi networking:
| Distance | 900 MHz | 2.4 GHz | 5.8 GHz | 60 GHz |
|---|---|---|---|---|
| 100 m | 2.89 m | 1.77 m | 1.14 m | 0.35 m |
| 500 m | 6.46 m | 3.95 m | 2.54 m | 0.79 m |
| 1 km | 9.13 m | 5.59 m | 3.59 m | 1.12 m |
| 5 km | 20.41 m | 12.50 m | 8.04 m | 2.50 m |
| 10 km | 28.87 m | 17.68 m | 11.37 m | 3.54 m |
When planning a wireless bridge, follow these steps to ensure adequate Fresnel zone clearance:
For indoor WiFi where you cannot control obstructions, focus on optimal router placement and use the WiFi Coverage Estimator instead. If the signal is still weak, explore extending your WiFi range with additional hardware.
For longer links, Earth curvature effectively raises the ground level at the midpoint. This reduces the available clearance between the line-of-sight path and terrain. The height of the Earth bulge at the midpoint is approximately:
h = d² / (2 × k × R)
Where:
h = Earth bulge height (meters)
d = half the link distance (meters)
k = Earth radius factor (typically 4/3 for standard atmosphere)
R = Earth radius (6,371,000 meters)| Link Distance | Earth Bulge at Midpoint | Impact |
|---|---|---|
| 1 km | 0.015 m | Negligible |
| 5 km | 0.37 m | Minor |
| 10 km | 1.47 m | Significant |
| 20 km | 5.89 m | Critical — raise antennas |
| 50 km | 36.8 m | Tower/mast required |
When obstructions encroach on the Fresnel zone, these strategies help recover link quality. The best approach depends on your site conditions and budget. Use the Antenna Gain Calculator to evaluate gains from antenna upgrades:
After setting up your link, validate performance with a speed test and monitor connectivity via What Is My IP. Secure the link with a strong password to prevent unauthorized access.
The first Fresnel zone is the innermost ellipsoidal region between a transmitter and receiver. Radio waves within this zone arrive at the receiver with less than half a wavelength of path difference, meaning they add constructively to the direct signal. Obstructions here cause the most signal degradation.
The outer 40% of the first Fresnel zone contributes minimally to received signal strength. Engineering practice shows that 60% clearance yields essentially the same performance as 100% clearance while being far more practical to achieve. Below 60%, signal loss begins to increase rapidly.
For typical indoor distances (under 30 meters), the Fresnel zone radius is small enough (under 1 meter at 5 GHz) that it is rarely the primary concern. Wall attenuation dominates indoor signal loss. Use the WiFi Coverage Estimator for indoor planning instead.
Higher frequencies produce smaller Fresnel zones. At 5.8 GHz, the zone radius is roughly 60% of the 2.4 GHz zone for the same distance. This is one advantage of using higher frequencies for point-to-point links — less clearance is needed.
The second Fresnel zone actually contains signals that interfere destructively with the direct signal. Ironically, partial obstruction of the second zone can slightly improve signal strength. This is why only the first zone clearance matters for practical link design.
Rain does not change the physical Fresnel zone, but heavy rain adds signal absorption (rain fade), particularly at frequencies above 10 GHz. For 5 GHz links, rain fade is minimal (under 1 dB), but it should be included in the fade margin for critical links.
Use a GPS device to mark the transmitter and receiver locations, then walk the path measuring elevation at regular intervals. Compare terrain height plus vegetation height against the required clearance from this calculator. Professional tools like Google Earth Pro can also generate terrain profiles.
