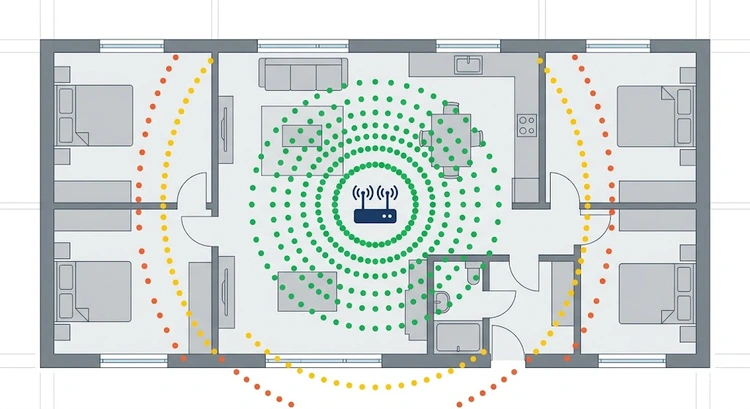

Find the best position for your wireless router based on your room dimensions, wall materials, and layout. This tool calculates the optimal placement to maximize WiFi coverage and minimize dead zones throughout your home or office.
The physical location of your wireless router is the single most impactful factor in your WiFi coverage quality. Even the most expensive WiFi 6 router will perform poorly if placed in a corner behind a concrete wall. Studies show that moving a router from a corner to the center of a home can improve signal strength by 10-15 dBm — equivalent to doubling or tripling your usable coverage area.
Before running a speed test, consider whether your router position might be the root cause of slow WiFi. Our optimizer uses signal propagation models and wall attenuation data to calculate the best position for your specific layout.
Different building materials attenuate WiFi signals at dramatically different rates. The material between your router and devices matters more than raw distance. Understanding these values helps you plan around dead zones:
| Material | 2.4 GHz Loss (dB) | 5 GHz Loss (dB) | 6 GHz Loss (dB) | Common In |
|---|---|---|---|---|
| Drywall / Wood | 3-4 | 4-5 | 5-6 | Most US homes |
| Plaster | 5-7 | 6-8 | 7-10 | Older homes, apartments |
| Brick | 6-10 | 8-12 | 10-15 | Exterior walls, older buildings |
| Concrete / Cinder Block | 10-15 | 12-18 | 15-22 | Basements, commercial |
| Metal Studs / Foil Insulation | 12-18 | 15-25 | 20-30+ | Commercial, renovated homes |
| Glass (standard) | 2-3 | 3-4 | 4-5 | Windows, glass doors |
| Mirrors / Tinted Glass | 6-8 | 8-10 | 10-14 | Bathrooms, mirrored walls |
Pro Tip: If your home has thick apartment walls or concrete construction, consider a mesh WiFi system instead of trying to blast signal through heavy materials. A mesh system beats a single router in multi-room scenarios because each node communicates wirelessly to blanket your space without fighting through walls.
WiFi signals radiate outward and slightly downward from omnidirectional antennas. Placing your router at the right height ensures the signal pattern aligns with where your devices actually are. The antenna gain pattern of most consumer routers is a donut shape — strongest to the sides, weakest directly above and below.
| Scenario | Recommended Height | Why |
|---|---|---|
| Single floor | 5-7 ft (shelf or wall-mount) | Aligns signal with device height |
| Two floors | Ceiling of 1st floor | Splits coverage between floors |
| Three floors | Middle floor, ceiling-mounted | Equal distance to top and bottom floors |
| Basement office | Near ceiling of basement | Reduces floor penetration loss |
| Large open plan | 8-10 ft (mounted high) | Maximizes horizontal coverage radius |
Your choice of frequency band dramatically affects coverage radius. The 2.4 GHz vs 5 GHz tradeoff is fundamental — lower frequencies travel farther but deliver less throughput. Newer dual-band and tri-band routers let you use both simultaneously:
| Band | Indoor Range (open) | Through 1 Drywall | Through 1 Concrete | Best For |
|---|---|---|---|---|
| 2.4 GHz | ~150 ft | ~120 ft | ~60 ft | IoT, range priority |
| 5 GHz | ~80 ft | ~55 ft | ~25 ft | Streaming, gaming |
| 6 GHz (WiFi 6E) | ~50 ft | ~35 ft | ~15 ft | Ultra-fast, low latency |
Even experienced users make these placement errors that kill WiFi performance. Avoid these to get the most from your router before resorting to range extenders:
If your router is already well-placed and you still have dead zones, it might be time to look into access point mode or connecting two routers to extend coverage.
For multi-story homes, vertical placement is just as important as horizontal centering. WiFi signals lose 10-15 dB per floor depending on construction. If one router cannot cover all floors, consider a mesh WiFi setup with nodes on each level. You can use the Link Budget Calculator to verify whether your signal can reach between floors.
When using a single router for two floors, the best position is on the ceiling of the lower floor (or the floor of the upper level). This splits the vertical distance equally. Use our Free Space Path Loss Calculator to estimate the signal degradation at various distances.
Once your router is positioned optimally, fine-tune these settings for maximum performance:
The ideal spot is at the center of the home horizontally, mounted on the ceiling of the first floor or the floor of the second floor. This splits vertical distance equally. If that is not possible, place it on the upper floor since signals travel downward more effectively than upward through floors.
Yes. Elevating a router from floor level to 5-7 feet typically improves coverage by 20-30%. Omnidirectional antennas radiate signal in a horizontal disc pattern, so mounting at device height (desk/shelf level) aligns the strongest signal with where devices are used.
No. Placing near a window wastes signal outdoors and may also pick up more interference from neighboring networks. Central placement is always better unless you specifically need outdoor coverage.
Large furniture like bookshelves, metal filing cabinets, and appliances can attenuate signals by 3-8 dB. Keep a clear line of sight from the router to the areas you use most. Aquariums are surprisingly effective signal blockers due to the water mass.
At least 10 feet. Microwaves operate at 2.45 GHz, directly overlapping the 2.4 GHz WiFi band. Even modern microwaves leak enough radiation to cause interference. Switching to the 5 GHz band eliminates this issue entirely.
For spaces under 1,500 sq ft with minimal walls, a single well-placed router is sufficient. For larger homes, multi-floor buildings, or spaces with concrete/brick walls, a mesh system provides more consistent coverage. See our mesh vs extender comparison for details.
For single-floor coverage, point all antennas straight up (vertical). For multi-floor coverage, angle one antenna vertically and one horizontally at 90 degrees. This creates both horizontal and vertical radiation patterns to cover multiple levels.
