Choosing the wrong WiFi channel is one of the most common — and most overlooked — causes of slow wireless speeds and intermittent dropouts. If your neighbors' routers are all broadcasting on channel 6 and your router is also on channel 6, every transmission collides and slows down all networks in range. This free WiFi Channel Finder helps you understand whether your current channel is causing interference and tells you which channel to switch to for the best performance. Select your frequency band and current channel below to get an instant analysis. Once you know the best channel, log into your router — typically at 192.168.1.1 — to make the change.
WiFi channels are subdivisions of the radio frequency spectrum that wireless networks use to transmit data. Rather than all routers in a neighborhood broadcasting on the exact same frequency and colliding with each other, the available spectrum is divided into channels — numbered slices of bandwidth that routers can be tuned to. Choosing a different channel from your neighbors reduces interference and can dramatically improve your wireless throughput and reliability.
Think of WiFi channels like lanes on a highway. If every car tries to use lane 6, traffic grinds to a halt. Spreading vehicles across different lanes — especially lanes that do not overlap — keeps traffic flowing. The same principle applies to wireless networks. In a dense apartment building with dozens of networks, the right channel choice can mean the difference between 5 Mbps and 200 Mbps on a connection that should deliver 300 Mbps. Check your current speeds with our Speed Test tool before and after changing channels to measure the improvement.
Channels are a property of the physical (PHY) and MAC layer of 802.11 wireless standards. Every WiFi router, access point, and mesh node broadcasts on a specific channel. Most routers default to "Auto" channel selection, which scans the environment at boot time and picks what appears to be the least congested channel — but this scan happens only once, at startup, and may not reflect current conditions in your neighborhood.

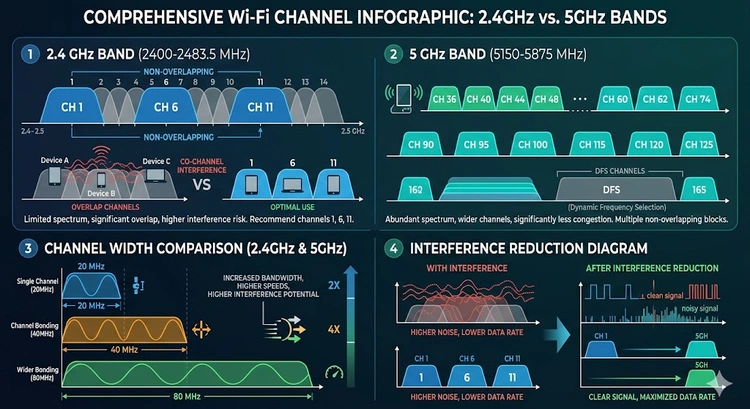

The 2.4 GHz band in most countries offers 11–13 channels (13 in Europe, 11 in North America), numbered 1 through 13. However, each 2.4 GHz channel is 22 MHz wide, and the channels are spaced only 5 MHz apart. This means adjacent channels overlap significantly — channel 1 bleeds into channels 2, 3, 4, and 5; channel 6 bleeds into 4, 5, 7, and 8. Only channels 1, 6, and 11 are spaced far enough apart (25 MHz center-to-center) that they do not overlap with each other at all.
The table below shows the center frequencies and overlap relationships for all 2.4 GHz channels:
| Channel | Center Freq. | Overlaps With | Non-Overlapping? |
|---|---|---|---|
| 1 | 2412 MHz | 2, 3, 4, 5 | Yes |
| 2 | 2417 MHz | 1, 3, 4, 5, 6 | No |
| 3 | 2422 MHz | 1, 2, 4, 5, 6, 7 | No |
| 4 | 2427 MHz | 1, 2, 3, 5, 6, 7, 8 | No |
| 5 | 2432 MHz | 1, 2, 3, 4, 6, 7, 8, 9 | No |
| 6 | 2437 MHz | 2, 3, 4, 5, 7, 8, 9, 10 | Yes |
| 7 | 2442 MHz | 3, 4, 5, 6, 8, 9, 10, 11 | No |
| 8 | 2447 MHz | 4, 5, 6, 7, 9, 10, 11 | No |
| 9 | 2452 MHz | 5, 6, 7, 8, 10, 11 | No |
| 10 | 2457 MHz | 6, 7, 8, 9, 11 | No |
| 11 | 2462 MHz | 7, 8, 9, 10 | Yes |
The practical rule: always use channel 1, 6, or 11 on 2.4 GHz. Any other channel will overlap with at least two of these three, making interference worse rather than better. If all three are congested in your area, pick the least congested of the three — do not switch to channel 3 or 9 to avoid overlap, as that just spreads your interference to more networks rather than concentrating it on fewer.
The 5 GHz band is a major improvement over 2.4 GHz for channel planning. While 2.4 GHz has only three non-overlapping channels, 5 GHz offers up to 25 non-overlapping 20 MHz channels in North America (and more in some regions). The channels are numbered non-consecutively — 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 — and are spaced 20 MHz apart, so they do not overlap at 20 MHz width.
The 5 GHz band also has significantly less interference from non-WiFi sources. The 2.4 GHz band is shared with Bluetooth devices, baby monitors, microwave ovens, cordless phones, and ZigBee smart home devices — all competing for the same congested spectrum. The 5 GHz band, by contrast, is used almost exclusively by WiFi. The trade-off is range: 5 GHz signals attenuate faster through walls and floors, so they work best at shorter distances. For devices within 15–20 meters of your router with no more than one or two walls in between, 5 GHz almost always outperforms 2.4 GHz.
If you are using a dual-band router, connect nearby high-bandwidth devices (laptops, streaming devices, gaming consoles) to 5 GHz and leave 2.4 GHz for IoT devices, smart home sensors, and devices at the far edges of your home. To learn how to configure your wireless settings, log into your router using our Find Router IP Address guide first.
Modern WiFi standards support channel bonding — combining multiple adjacent channels to create a wider channel with higher throughput. A wider channel carries more data per transmission, but it also occupies more of the spectrum, making congestion worse in shared environments.
| Width | Band | Max Throughput | Best For | Interference Risk |
|---|---|---|---|---|
| 20 MHz | 2.4 GHz / 5 GHz | ~72 Mbps (802.11n) | Dense urban areas, many neighbors | Low |
| 40 MHz | 2.4 GHz / 5 GHz | ~150 Mbps (802.11n) | Suburban homes, moderate density | Medium (uses 2 channels) |
| 80 MHz | 5 GHz only | ~433 Mbps (802.11ac) | Low-density areas, single-family homes | Medium-High |
| 160 MHz | 5 GHz / 6 GHz | ~867 Mbps (802.11ac) | Rural areas, very few neighbors | High (uses 8 channels) |
| 80+80 MHz | 5 GHz / 6 GHz | ~867 Mbps (802.11ac) | Low-interference 5 GHz environments | High |
In a dense apartment complex, using 40 MHz on 2.4 GHz is almost always counterproductive — it doubles the channel space your network occupies, increasing interference for everyone. On 5 GHz in a typical home, 80 MHz is usually the sweet spot between throughput and interference. WiFi 6 (802.11ax) and WiFi 6E (which adds the 6 GHz band) improve channel efficiency dramatically through OFDMA, allowing multiple clients to share a channel simultaneously. If your router supports WiFi 6, consider updating the firmware to ensure you benefit from all 802.11ax improvements.
Co-channel interference (CCI) occurs when two networks broadcast on the exact same channel. They can hear each other's transmissions and must take turns — the 802.11 CSMA/CA protocol requires every device to listen before transmitting and back off if the medium is busy. The result is that total throughput is split among all networks sharing the channel. In a building with 20 networks all on channel 6, each network gets roughly 1/20th of available airtime.
Adjacent-channel interference (ACI) is different and often worse. When two networks use overlapping but different channels (e.g., one on channel 6 and one on channel 8), their signals bleed into each other but the CSMA/CA protocol cannot detect the overlap cleanly. This creates corrupted transmissions that must be retransmitted, reducing throughput without the orderly turn-taking of co-channel interference. This is exactly why you should never use channels 2–5 or 7–10 on 2.4 GHz — they cause adjacent-channel interference with multiple non-overlapping channels simultaneously.
To identify what channels your neighbors are using, Windows users can run netsh wlan show networks mode=bssid from a command prompt. Mac users can hold Option and click the WiFi icon. Both show SSID, BSSID, channel, and signal strength for every visible network. Armed with that information and this tool's analysis, you can pick the truly least congested channel. You can also check if any devices are causing issues with our Who Is On My WiFi guide.
Changing your WiFi channel is a simple settings change in your router's admin panel. The general steps are the same across brands, but the menu names vary:
Note: Some routers separate the 2.4 GHz and 5 GHz radios into different settings pages. Make sure you are changing the correct band. Routers with band steering may show a single SSID but manage both bands — check for an "Advanced Wireless" section to set each band's channel independently.
Pro Tip: Re-analyze your channel every few months, especially if neighbors move in or you add new wireless devices. The 2.4 GHz band in particular shifts constantly as IoT devices, smart TVs, and new routers come online. Pair your channel optimization with a speed test to confirm real-world improvement. If you are still seeing interference after optimizing channels, consider upgrading to a router that supports the Wi-Fi 6 (802.11ax) standard, which uses OFDMA to serve multiple clients simultaneously on the same channel without the same collision problems.
Key Takeaways
Because each 2.4 GHz channel is 22 MHz wide but channels are spaced only 5 MHz apart, adjacent channels overlap. Channels 1, 6, and 11 are the only three whose center frequencies are spaced 25 MHz apart — far enough to avoid overlap with each other. Using any other channel (e.g., channel 3 or 9) guarantees your signal overlaps with at least two of the three non-overlapping channels, causing more interference than co-channel use of 1, 6, or 11.
Use 5 GHz for devices close to the router (under 10–15 meters, 1–2 walls) where you want maximum speed — laptops, phones, smart TVs, gaming consoles. Use 2.4 GHz for IoT devices, smart home sensors, and devices far from the router or through many walls, where 2.4 GHz's better range and wall penetration outweigh its lower top speed. Modern dual-band and tri-band routers can serve both simultaneously.
DFS stands for Dynamic Frequency Selection. Channels 52–144 in the 5 GHz band are shared with radar systems (weather radar, military radar). When a WiFi router detects a radar signal on its channel, DFS requires it to vacate that channel within 10 seconds and not return for 30 minutes. This causes a brief connectivity dropout. If you prioritize stability, stick to non-DFS 5 GHz channels: 36, 40, 44, 48 (UNII-1) and 149, 153, 157, 161, 165 (UNII-3).
Briefly, yes. When you change the channel, the router's wireless radio restarts for a few seconds. All connected devices lose their WiFi connection momentarily and then reconnect automatically — usually within 5–15 seconds. You do not need to reconfigure anything on your devices; they simply reconnect to the same SSID on the new channel. Plan the change for a time when nobody is in a video call or online game.
For gaming, minimizing latency and packet loss is more important than peak throughput. On 2.4 GHz, use channel 1, 6, or 11 — whichever your neighbors use least. On 5 GHz, any non-DFS channel (36–48 or 149–165) works well; avoid DFS channels if your router's DFS implementation causes occasional dropouts when radar is detected. For the lowest latency, a wired Ethernet connection beats any WiFi channel.
On Windows, open Command Prompt and run netsh wlan show networks mode=bssid — it lists every visible network with its channel. On macOS, hold the Option key and click the WiFi menu bar icon, then click "Open Wireless Diagnostics" and use the Scan tab. On Android, apps like WiFi Analyzer show a live channel usage map. Pick the channel with the fewest networks and the weakest competing signal strengths.
Channel 14 is only legal in Japan for 802.11b networks (11 Mbps). It is not available in North America, Europe, or most other regions. Modern 802.11n/ac/ax routers do not support channel 14 at all. Stick to channels 1–11 in North America (or 1–13 in Europe) and always use 1, 6, or 11 for best results.
 |
 |
 |
 |
