by Tommy N. Updated Apr 12, 2026
Dead zones, buffering, and weak signals in far rooms are problems that a traditional single router often can't solve. Learning how to setup mesh wifi system properly eliminates these issues by creating a unified wireless network with seamless coverage throughout your entire home. Unlike WiFi extenders that create separate networks with degraded speeds, mesh systems use multiple nodes that work together as one intelligent network.
This guide walks you through setting up a mesh WiFi system from any major brand, including Google/Nest WiFi, Amazon Eero, Netgear Orbi, TP-Link Deco, ASUS ZenWiFi, and Linksys Velop. You'll learn generic setup steps that apply to all brands, optimal node placement strategies, and troubleshooting tips for common issues. Before starting, know your IP address and make sure you can find your router IP address for initial configuration.

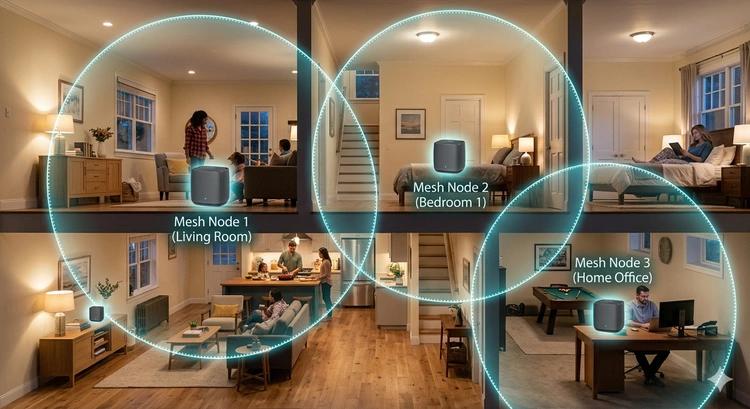

A mesh WiFi system consists of two or more nodes (also called points, satellites, or units) that communicate with each other to create a single, seamless wireless network. The main node connects directly to your modem or existing router, while satellite nodes are placed throughout your home to extend coverage. All nodes share the same SSID and password, so your devices automatically connect to the nearest node as you move around.
The key difference between mesh WiFi and traditional WiFi extenders is how they handle traffic. Extenders receive the signal from your router and rebroadcast it, typically cutting bandwidth in half and creating a separate network name. Mesh systems use dedicated backhaul channels (either a dedicated radio band or wired Ethernet) to communicate between nodes without reducing client bandwidth. This means you get consistent speeds whether you're next to the main node or a satellite.
| Feature | Mesh WiFi System | WiFi Range Extender | Single Router |
|---|---|---|---|
| Coverage | Whole home (scalable) | Extended, with gaps | Limited by one unit |
| Speed consistency | High (dedicated backhaul) | Low (speed halved) | Varies with distance |
| Seamless roaming | Yes (one SSID) | No (separate SSID) | N/A |
| Setup difficulty | Easy (app-guided) | Moderate | Easy |
| Cost | $150-$500+ | $20-$80 | $50-$300 |
| Scalability | Add more nodes | Limited | None |
While each brand has its own app and specific interface, the general setup process is remarkably similar across all mesh WiFi systems. Follow these steps regardless of which brand you choose.
Every mesh kit includes at least two nodes (one main, one or more satellites), power adapters, and an Ethernet cable. The main node usually looks identical to the satellites but may be labeled differently. Some systems like Netgear Orbi have a distinct-looking router unit. Identify which unit is the main node — check the box label or quick start guide.
Use the included Ethernet cable to connect your modem's LAN port to the main node's WAN/Internet port. Plug in the main node and wait for its LED indicator to show it's ready for setup (usually a pulsing or blinking light). If you're replacing an existing router, disconnect it first and power cycle your modem by unplugging it for 30 seconds before connecting the mesh node.
Download the manufacturer's app (Google Home, Eero, Orbi, Deco, ASUS Router, Linksys) on your smartphone. Create an account or sign in, then follow the app's guided setup wizard. The app will detect the main node, configure your internet connection (most ISPs use DHCP), and ask you to create your WiFi network name and password. Use a password generator for a strong WiFi password.
Once the main node is online, place a satellite node in a location between the main node and your desired coverage area. Plug it in and use the app to add it to your network. The app will verify the connection quality between nodes. Repeat for additional satellites. Don't place all satellites at once — add them one at a time to ensure each connects properly.
After all nodes are online, walk through your home with a WiFi analyzer app to check signal strength and identify any remaining weak spots. Adjust node positions as needed. Configure additional settings like guest networks, parental controls, and device prioritization through the app. You should also change the admin password from the default.
Google and Nest WiFi systems use the Google Home app for setup. Nest WiFi Pro supports WiFi 6E (6 GHz band) and WPA3. Scan the QR code on the bottom of each device during setup. Google's mesh system automatically manages band steering and channel selection, so there's minimal manual configuration needed. Nest WiFi points with built-in speakers double as Google Assistant smart speakers.
Eero uses the Eero app and requires an Amazon account. Eero 6+ and Eero Pro 6E support WiFi 6/6E. Setup is extremely simple — the app walks you through every step. Eero's TrueMesh technology dynamically routes traffic between nodes for optimal performance. Eero also supports Eero Secure (subscription) for ad blocking, threat protection, and content filtering.
Netgear Orbi uses the Orbi app (newer models) or the web interface at orbilogin.com. Orbi systems feature a dedicated tri-band backhaul channel that separates node-to-node communication from client traffic, providing superior performance. During setup, wait for the satellite's LED to turn a solid color (blue/magenta indicates distance quality). Orbi also supports port forwarding and VPN configuration through the web interface.
TP-Link Deco uses the Deco app and supports the widest range of price points from budget (Deco M4) to premium (Deco XE75 Pro). Setup is app-guided and straightforward. Deco systems include built-in antivirus protection via HomeCare on most models. All Deco units are interchangeable — you can mix different Deco models in one network, which is great for expanding coverage incrementally.
ASUS ZenWiFi uses the ASUS Router app or the web interface at router.asus.com. ZenWiFi offers the most advanced configuration options of any consumer mesh system, including AiMesh (which lets you add any compatible ASUS router as a mesh node), AiProtection security, and full NAT and firewall customization. Power users who want granular control will appreciate ASUS's depth of settings.
Linksys Velop uses the Linksys app. Velop's Intelligent Mesh technology supports both wireless and wired backhaul. During setup, the app includes a placement test that measures signal strength between nodes. Velop also supports Apple HomeKit integration for added smart home security. You can change DNS settings through the Linksys web interface for more advanced network configurations.
Proper node placement is the single most important factor in mesh WiFi performance. Here's a general guide based on home size and layout.
| Home Size (sq ft) | Recommended Nodes | Placement Strategy |
|---|---|---|
| Under 1,500 | 2 nodes | Main node central, satellite in far area |
| 1,500 - 2,500 | 2-3 nodes | Triangle pattern across floors/wings |
| 2,500 - 3,500 | 3-4 nodes | Diamond pattern, one per floor minimum |
| 3,500 - 5,000 | 4-5 nodes | Star pattern from center, cover all wings |
| Over 5,000 | 5+ nodes | Grid pattern, consider wired backhaul |
If a satellite node won't join the network, move it closer to the main node for initial setup. Once it's connected and configured, you can relocate it to its permanent position. Also try resetting the satellite to factory defaults and re-adding it through the app. Check that all nodes are running the same firmware version. If your subnet mask or gateway is misconfigured, it can prevent nodes from communicating properly.
Slow speeds usually indicate poor backhaul signal between nodes. Move the satellite closer to the main node or add an intermediate node. If your mesh system supports wired backhaul, running an Ethernet cable between nodes provides the best performance. Check your internet speed at each node location to identify weak links.
Some devices, especially older ones, are "sticky" — they hold onto a weaker node connection instead of switching to a closer one. Ensure band steering is enabled in your mesh settings. You can also temporarily disconnect and reconnect WiFi on the sticky device, or enable 802.11r (fast roaming) if your mesh system supports it. Understanding how DNS resolves on your network can also help diagnose devices that seem slow to transition.
Pro Tip: For the ultimate mesh performance, use wired Ethernet backhaul between nodes wherever possible. This frees up all wireless bands for client devices and provides the fastest, most reliable node-to-node connection. Even running Ethernet to just one satellite makes a significant difference in overall network performance.
Yes, for most homes. Mesh systems provide seamless roaming, consistent speeds, and a single network name. Extenders create separate networks and typically cut bandwidth in half. The main advantage of extenders is lower cost.
Yes. Put your ISP's device into bridge mode (disabling its router functions) and connect the mesh main node to it. This avoids double NAT issues. If you can't enable bridge mode, the mesh system will still work but with double NAT, which may cause issues with gaming or VPN connections.
Most homes under 2,500 square feet need 2-3 nodes. Larger homes, multi-story houses, or homes with thick walls may need 4-5 nodes. Start with a 2-pack and add satellites if coverage tests reveal weak areas.
This depends on the brand. TP-Link Deco allows mixing different Deco models. ASUS AiMesh lets you combine different ASUS routers. Most other brands require nodes from the same product family. Check your manufacturer's compatibility documentation.
Yes, especially systems with dedicated backhaul channels and low-latency optimizations. For competitive gaming, connect your gaming device via Ethernet to the nearest node. Enable QoS or game mode if available. Mesh adds minimal latency compared to a direct router connection.
Yes. Running both creates network conflicts. Disconnect your old router and connect the mesh main node directly to your modem. If your old router was also your modem, put it in bridge mode to let the mesh system handle routing.
Most mesh systems update automatically through their apps. You can also check for updates manually in the app settings. Keep auto-update enabled to ensure you always have the latest security patches and performance improvements.
Setting up a mesh WiFi system is one of the best investments you can make for reliable whole-home connectivity. With proper node placement and configuration, you'll enjoy fast, seamless WiFi in every room. For more details on mesh technology standards, visit the Wi-Fi Alliance EasyMesh page.
 |
 |
 |
 |
