What Is Mesh WiFi and How Does It Work? (Complete Guide)

If you've ever struggled with WiFi dead zones, dropped connections in far-off rooms, or frustrating buffering while streaming, you've probably heard someone recommend mesh WiFi. But what exactly is mesh WiFi, how does it differ from a traditional router or range extender, and is it the right solution for your home? This complete guide answers all of those questions and helps you decide whether a mesh system is worth the investment.

Mesh WiFi replaces your single router with a system of two or more interconnected nodes (also called satellites or access points) that work together to blanket your entire home in a seamless WiFi signal. Unlike traditional extenders that create separate networks with signal loss, mesh nodes communicate with each other to provide a single, unified network with consistent speeds throughout your space.

How Mesh WiFi Works: Nodes, Backhaul, and Seamless Roaming

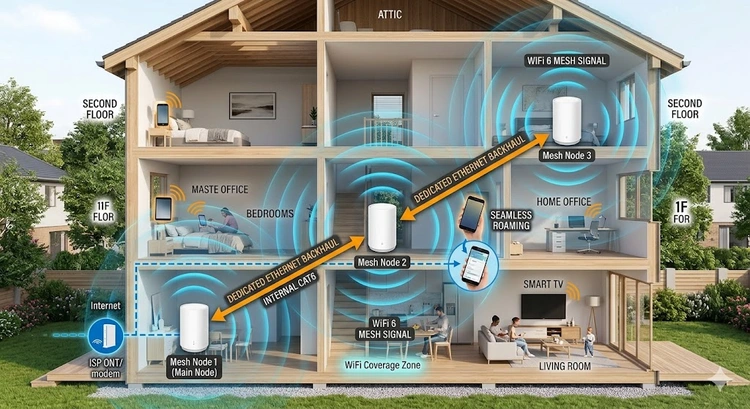

A mesh WiFi system consists of a primary node (connected to your modem via Ethernet) and one or more satellite nodes placed throughout your home. These nodes communicate with each other over a dedicated connection called backhaul, which can be wireless (using a separate radio band) or wired (Ethernet cables between nodes).

When you move through your home, your device seamlessly transitions from one node to another without dropping the connection — a process called seamless roaming or fast roaming (using 802.11k/v/r protocols). This is fundamentally different from range extenders, where you often have to manually switch between networks (e.g., "MyWiFi" and "MyWiFi_EXT") as you move around. You'll use a single WiFi network name across all nodes.

Each node in the mesh system handles DHCP and routing intelligently, with the primary node acting as the main router and controller. All configuration is typically managed through a smartphone app rather than a traditional web interface, making setup and management significantly easier for non-technical users.

Mesh WiFi vs Traditional Router vs Range Extender

Understanding the differences between these three approaches helps you choose the right solution. Each has its strengths and weaknesses depending on your home size, layout, and budget.

Self-Healing Networks: Built-In Redundancy

One of mesh WiFi's most impressive features is self-healing. In a mesh network, if one node fails or loses power, the remaining nodes automatically reconfigure their connections to maintain coverage. Traffic reroutes through other nodes to reach the primary unit. While you may lose coverage in the immediate area around the failed node, the rest of the network continues functioning normally.

This self-healing capability extends to performance optimization as well. Mesh systems continuously monitor signal quality between nodes and adjust routing paths to avoid interference or congestion. If a microwave temporarily disrupts the 2.4GHz connection between two nodes, the system automatically switches to a 5GHz or 6GHz backhaul path — all transparently and without user intervention.

Backhaul Types: Wireless vs Wired

The backhaul is the communication channel between mesh nodes, and its quality directly determines your mesh system's performance. There are two main types.

Wireless Backhaul

Most mesh systems use a dedicated wireless radio band for backhaul communication between nodes. Tri-band systems reserve one entire 5GHz band exclusively for backhaul, ensuring that node-to-node communication doesn't compete with your device traffic. Dual-band mesh systems share their 5GHz band between backhaul and client devices, which can reduce performance — avoid dual-band mesh if possible.

Wired (Ethernet) Backhaul

For the best possible mesh performance, connect nodes to each other using Ethernet cables. Wired backhaul eliminates wireless overhead entirely, providing full-speed connections between nodes. This requires running Ethernet cables through your home, but if your house has existing Ethernet wiring (or you're willing to install it), wired backhaul delivers the best experience. Most mesh systems support mixed backhaul — some nodes wired, others wireless — giving you flexibility. Understanding how NAT works can help you troubleshoot routing issues in wired backhaul setups.

Popular Mesh WiFi Systems Compared

Who Needs Mesh WiFi?

Mesh WiFi isn't for everyone. It's specifically designed to solve coverage and consistency problems that single routers can't address. Here's a quick decision guide based on your situation.

You likely need mesh if: Your home is larger than 2,000 square feet. You have multiple floors (especially with concrete or thick walls between them). You have persistent dead zones that don't improve with router repositioning. You have 20+ connected devices competing for bandwidth. You need consistent WiFi coverage in outdoor areas like patios or garages. If you've already tried resetting your router and optimizing your current setup without improvement, mesh is likely the answer.

You probably don't need mesh if: You live in a small apartment (under 1,000 sq ft). A single well-placed router covers your entire space adequately. You have fewer than 10 devices. Budget is a primary concern — a good single router is more cost-effective for small spaces. Check your current performance with our speed test before deciding.

Pro Tip: Before buying a mesh system, try repositioning your current router to a central location and switching to the least congested WiFi channel. These free optimizations can sometimes resolve dead zones without the expense of new hardware. If those steps don't help, mesh WiFi is your best next option.

Limitations of Mesh WiFi

While mesh systems solve many common WiFi problems, they're not perfect. The primary limitation is cost — a quality tri-band mesh system costs 2-3 times more than a comparable single router. Wireless backhaul also introduces some overhead, meaning each hop between nodes adds a small amount of latency (typically 2-5ms per hop). For most users this is imperceptible, but competitive gamers should prefer wired backhaul or a single powerful router.

Mesh systems also offer less granular control than traditional routers. Most use app-based management that simplifies common tasks but hides advanced features like custom firewall rules, detailed port forwarding, VLAN configuration, and detailed traffic analysis. Power users who need these features should look at mesh systems from ASUS (AiMesh) or consider prosumer options like Ubiquiti UniFi, which offer both mesh convenience and advanced configuration via their management interfaces.

Frequently Asked Questions

Can I use a mesh WiFi system with my existing modem?

Yes. The primary mesh node connects to your modem via Ethernet just like a regular router. If your ISP provides a modem-router combo (gateway), you can either put it in bridge mode to let the mesh system handle routing, or connect the mesh system to the gateway and let it create a separate network. The first option is preferred to avoid double-NAT issues.

How many mesh nodes do I need?

A 2-pack covers most homes up to 3,000-4,000 square feet. A 3-pack handles 4,000-6,500 square feet. For very large homes, some systems support adding additional nodes. Place nodes so each one is within clear line-of-sight or one wall away from at least one other node to maintain strong backhaul connections.

Is mesh WiFi better than a WiFi extender?

For most people, yes. Mesh WiFi provides seamless roaming, self-healing, and consistent speeds throughout your home. Extenders create separate networks, cut bandwidth in half, and require manual switching. The only advantage of extenders is lower cost — they make sense as a quick fix for a single dead zone on a tight budget.

Does mesh WiFi increase internet speed?

Mesh WiFi doesn't increase your internet plan speed, but it ensures you can actually achieve your full plan speed in more areas of your home. If your ISP provides 500 Mbps but your bedroom router only delivers 50 Mbps due to distance, a mesh system can deliver closer to 400-500 Mbps in that same bedroom by placing a node nearby.

Can I add more mesh nodes later?

Yes. Most mesh systems are expandable — you can buy additional nodes and add them to your existing network through the manufacturer's app. This scalability is one of mesh WiFi's key advantages. Start with a 2-pack and add nodes as needed if you find specific areas still lacking coverage.

Do mesh WiFi systems support guest networks?

Yes, virtually all mesh systems support guest networks. The guest network extends across all nodes just like your primary network, so guests get coverage throughout your home. Most systems allow you to create a separate guest SSID with internet-only access that's isolated from your main network devices.

Will mesh WiFi work with my smart home devices?

Yes. Mesh systems are actually ideal for smart homes because they provide consistent 2.4GHz coverage throughout your home, which most IoT devices require. Many mesh systems also include built-in smart home hubs (Zigbee/Thread) to directly control smart devices without additional hardware.

Understanding what mesh WiFi is and how it works helps you make an informed decision about your home networking setup. For most homes larger than 2,000 square feet or with persistent dead zones, mesh WiFi provides the best combination of coverage, ease of use, and performance. Learn more about related networking concepts like gateways and subnet masks, or check the Wi-Fi Alliance EasyMesh standard for interoperability details. And don't forget to secure your mesh network with a strong admin password once it's set up.
