by Priya Nakamura Updated Apr 23, 2026
A VPN — Virtual Private Network — sounds like something only IT departments worry about, but understanding what a VPN is can save your privacy, protect your home network, and even speed up certain connections. If you've ever wondered why your data isn't safe on public Wi-Fi, or how people access content from other countries, a VPN is at the heart of the answer.
In this guide you'll learn exactly how a VPN works, how to set one up on your home network, and which protocol is right for your situation. Understanding VPNs pairs well with knowing your network fundamentals — if you're fuzzy on basics like what an IP address is or how DHCP assigns addresses on your network, those guides will fill in any gaps before you dive in here.

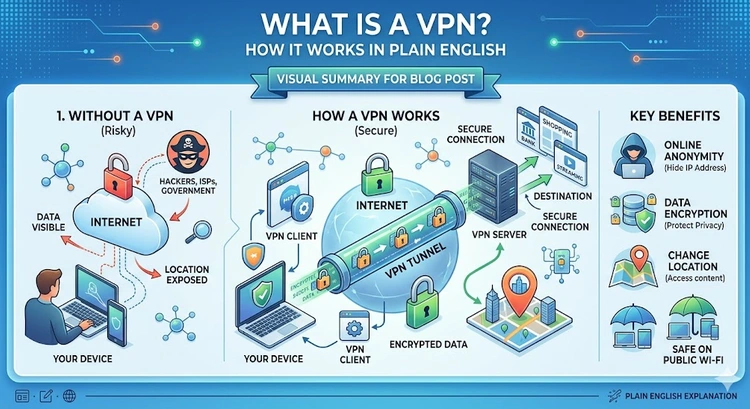

Think of the internet like a busy highway. Every car — representing a data packet — has a visible license plate that anyone watching traffic can read. A VPN is like driving your car into an armored, opaque tunnel: nobody outside the tunnel can see where you came from, where you're going, or what's in the vehicle. Your traffic enters the tunnel encrypted and exits at a VPN server on the other end, where it continues to its final destination wearing that server's "license plate" instead of yours.
More technically, a VPN client on your device (or router) establishes an encrypted connection — called a tunnel — to a VPN server operated by your VPN provider. All your internet traffic is wrapped inside this tunnel using an encryption protocol such as OpenVPN, WireGuard, or IKEv2. Websites and services you visit see the VPN server's IP address, not your real one. Your internet service provider (ISP) can see that you connected to a VPN server, but cannot read the contents of your traffic.
There are two common use cases for home users. The first is privacy: masking your IP address and encrypting traffic so your ISP, advertisers, or anyone snooping on a shared network cannot profile your browsing. The second is security on untrusted networks — coffee shop or hotel Wi-Fi. On those networks, other users on the same access point could potentially intercept unencrypted traffic. A VPN makes that interception useless because everything is encrypted before it ever leaves your device.
A router-level VPN is especially powerful because it protects every device on your home network at once — smart TVs, gaming consoles, phones, and laptops — without installing a separate app on each. Instead of configuring VPN software on five devices, you configure it once on your router, and the tunnel applies automatically to all traffic leaving your network. This does require a router that supports VPN client mode, which most modern DD-WRT, OpenWrt, and many stock firmware routers do.
Follow these steps to get a VPN running at the router level so your entire home network benefits from the encrypted tunnel.
Not all VPN protocols are equal. The table below compares the most common options so you can choose the right one for your router and use case.
| Protocol | Speed | Security | Router Support | Best For |
|---|---|---|---|---|
| WireGuard | Excellent | Modern (ChaCha20) | Wide (newer firmware) | Speed-sensitive use, gaming |
| OpenVPN (UDP) | Good | Strong (AES-256) | Very wide | General privacy, most routers |
| OpenVPN (TCP) | Moderate | Strong (AES-256) | Very wide | Restricted networks, firewalls |
| IKEv2/IPSec | Very good | Strong | Moderate | Mobile devices, frequent reconnects |
| L2TP/IPSec | Moderate | Dated | Wide (legacy) | Avoid — deprecated, weaker cipher |
If your router firmware supports WireGuard, use it. It has a dramatically smaller code surface (roughly 4,000 lines vs. OpenVPN's 70,000+), which means fewer potential vulnerabilities and faster audit cycles. Benchmarks consistently show WireGuard delivering 2–4× higher throughput than OpenVPN on the same hardware, which matters a lot when you're running VPN on a router CPU that's already handling NAT and firewall duties. Use our VPN protocol comparison tool to test which protocol gives you the best speeds from your location.
VPN setup is straightforward when everything goes smoothly, but a handful of predictable issues account for the vast majority of support questions. Most problems fall into three categories: the tunnel won't connect at all, it connects but traffic isn't routing through it, or performance is unacceptably slow.
A tunnel that won't establish usually points to a credential error, a firewall blocking the VPN port (OpenVPN uses UDP 1194 by default; WireGuard uses UDP 51820), or an incorrect server address in your config file. Check your router's VPN log for specific error messages — "TLS handshake failed" means certificate or credential issues, while "connection timed out" suggests a firewall or port block. If you're behind a double-NAT setup or your ISP blocks certain UDP ports, switch to OpenVPN over TCP 443, which is rarely blocked because it looks like standard HTTPS traffic.
Slow VPN speeds are almost always a CPU bottleneck on the router. Consumer routers often lack hardware AES acceleration, so encrypting every packet at high throughput saturates the processor, leaving less headroom for everything else — this can actually make your Wi-Fi feel slow overall. If VPN noticeably degrades your speeds, use our speed test to measure the difference with VPN on vs. off, then consider WireGuard (lower CPU overhead) or a router with a more capable processor. You can also use split tunneling if your router supports it, routing only sensitive traffic through the VPN and letting streaming or gaming go direct.
Pro Tip: Run a DNS leak test using our DNS lookup tool immediately after connecting to confirm your queries are resolving through the VPN's DNS servers. If the tool shows your ISP's DNS servers instead of your VPN provider's, you have a DNS leak — enable the "DNS leak protection" or "private DNS" option in your VPN client or router settings to fix it.
A VPN significantly improves your privacy by masking your IP address and encrypting your traffic, but it does not make you fully anonymous. Websites can still identify you through browser fingerprinting, cookies, and logged-in accounts, and your VPN provider itself can see your traffic if they choose to log it. For stronger anonymity, combine a no-log VPN with a privacy-focused browser and consider reviewing your Wi-Fi security settings to reduce local exposure as well.
A VPN adds some overhead because every packet must be encrypted and routed through an extra server, but a well-configured WireGuard VPN on a capable router typically costs only 10–20% of your raw speed. The bigger factor is your router's CPU — older or budget routers without hardware crypto acceleration can see much steeper drops. Use our speed test before and after enabling the VPN to measure your actual impact.
A VPN app protects only the device it's installed on, while a router-level VPN protects every device connected to your network automatically — including smart TVs, game consoles, and IoT devices that don't support VPN apps. The trade-off is that router VPNs are slightly harder to configure and don't support per-app split tunneling as easily. For most households, a router VPN is the more practical long-term solution.
Yes — your ISP can see that you are making an encrypted connection to a VPN server's IP address, but they cannot see the contents of that traffic or which sites you subsequently visit. Some ISPs throttle known VPN server IPs; if you experience this, switching to OpenVPN over TCP port 443 or using obfuscated servers (offered by several major VPN providers) can disguise VPN traffic as regular HTTPS.
Yes — this is one of the strongest use cases for a VPN. On public Wi-Fi, other users on the same network could potentially intercept unencrypted traffic using tools like packet sniffers. A VPN encrypts all your traffic at the device level before it even reaches the access point, making any intercepted data unreadable. Always activate your VPN before connecting to hotel, airport, or cafe Wi-Fi.
OpenVPN defaults to UDP port 1194, while WireGuard uses UDP port 51820. IKEv2 uses UDP ports 500 and 4500. If you are running a VPN server at home that remote devices connect to, you will need to forward those ports on your router — our port forwarding guide covers exactly how to do this. If you are running a VPN client on your router connecting out to a commercial VPN server, no port forwarding is needed.
For authoritative networking standards and specifications, refer to the Internet Assigned Numbers Authority (IANA) or IETF RFC documents.
 |
 |
 |
 |
About Priya Nakamura
Priya Nakamura is a telecommunications engineer and networking educator with a Master degree in Computer Networks and a background in ISP infrastructure design and management. Her experience spans both the technical architecture of broadband networks and the practical challenges home users face when configuring routers, managing wireless coverage, and understanding connectivity standards. At RouterHax, she covers WiFi standards and protocols, networking concepts, IP addressing, and network configuration guides.
