What Is a Modem and How Is It Different from a Router?

If you've ever stared at the tangle of boxes and cables near your internet connection and wondered which one is which, you're not alone — understanding what a modem is and how it differs from a router is one of the most common questions home network users have. A modem and a router are two distinct devices that serve very different roles, yet they're often confused, combined into a single unit, or used interchangeably in conversation. Getting clear on the difference can save you money, help you troubleshoot faster, and give you real control over your home network.

In this guide you'll learn exactly what a modem does, how it communicates with your internet service provider (ISP), and how it hands off that connection to your router so every device in your home can get online. Understanding these roles also helps when you need to reset your router, update router firmware, or diagnose why your internet is slow — because knowing which box to blame is half the battle.

What Is a Modem and What Does It Actually Do?

The word "modem" is a portmanteau of modulator–demodulator. Its job is to translate the signal that arrives at your home — whether through a coaxial cable, a telephone line, or fiber — into a digital signal that computers and routers can understand, and vice versa. Without a modem, your devices would have no way to interpret the raw signal your ISP sends down the line. Think of it as a universal translator sitting between the internet and everything else in your home.

Your ISP delivers internet service using a specific physical medium and protocol. Cable internet, for example, arrives via coaxial cable using the DOCSIS (Data Over Cable Service Interface Specification) standard. A cable modem knows how to speak DOCSIS, authenticate with your ISP's network, request an IP address via DHCP, and pass clean data upstream and downstream. DSL modems do the same thing over telephone copper, and fiber ONTs (Optical Network Terminals) perform an analogous role for fiber-optic light signals. The modem is always tailored to the type of internet connection your ISP provides.

Once the modem has established a connection with the ISP, it receives a single public IP address. This is the address the wider internet sees when traffic originates from your home. The modem passes that single connection — via an Ethernet port — to whatever device is plugged into it. If you plugged a single computer directly into your modem, that computer would get the public IP and could browse the internet, but nothing else in your home could share the connection. This is where the router comes in.

Modern cable modems commonly support DOCSIS 3.0 or DOCSIS 3.1. DOCSIS 3.1 modems support speeds up to 10 Gbps downstream and are required for gigabit cable plans. If your modem is older than your current internet plan, the modem itself may be the bottleneck — not your router, not your ISP. Checking your modem's DOCSIS version is one of the first things to do when speeds feel slow.

How a Router Is Different: Managing Your Local Network

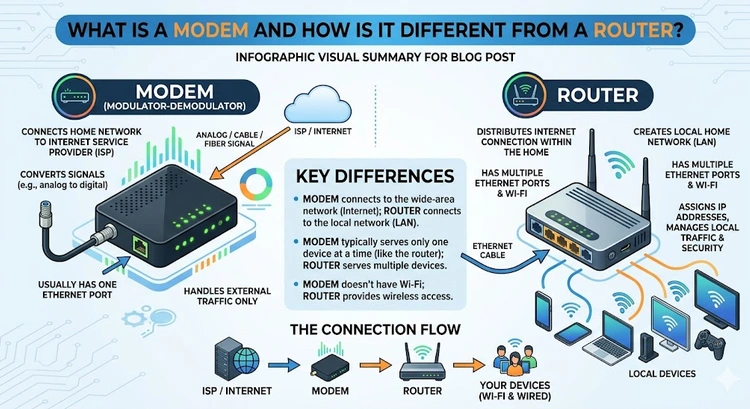

While the modem handles the conversation between your home and the ISP, the router manages the conversation between all the devices inside your home and distributes that single internet connection among them. Here's how the two devices work together in sequence:

1. The modem connects to the ISP — Your modem authenticates with your ISP and receives a single public IP address. All internet traffic that leaves or enters your home goes through this one address. The modem doesn't know or care how many devices you have; it only manages that one external connection.
2. The router connects to the modem — You run an Ethernet cable from the modem's output port to the router's WAN (Wide Area Network) port, sometimes labeled "Internet." The router now sees that public IP and takes ownership of distributing the connection. This is the boundary between the public internet and your private network.
3. The router creates a private network — Using a protocol called NAT (Network Address Translation), the router assigns private IP addresses (such as 192.168.1.x) to every device on your network. These private addresses are invisible to the outside internet. NAT allows dozens of devices to share that single public IP the modem received. You can learn more about how IP addresses work to understand this process more deeply.
4. The router broadcasts Wi-Fi (in most cases) — Modern routers include a wireless radio that broadcasts your Wi-Fi network name (SSID). Phones, laptops, smart TVs, and other wireless devices connect to this radio, receive a private IP from the router's built-in DHCP server, and can then reach the internet through the modem. Understanding DHCP helps clarify how this automatic IP assignment works.
5. The router enforces traffic rules — Beyond simple distribution, the router runs a firewall, handles port forwarding, manages a guest network, applies parental controls, and more. All of this logic lives in the router, not the modem. The modem has no awareness of individual devices — it just pipes data in and out.

Modem vs. Router vs. Gateway: Types and Specifications Compared

The terminology gets muddier when ISPs supply a single "gateway" device that combines both functions. Here's a breakdown of the main device types and their key characteristics to help you know what you have and what you might want.

Device Type	Primary Role	Assigns Private IPs?	Broadcasts Wi-Fi?
Standalone Modem	ISP signal translation	No	No
Standalone Router	Local network management	Yes (via DHCP)	Yes (on wireless models)
Modem–Router Gateway	Both combined	Yes	Yes
Cable Modem (DOCSIS 3.1)	Cable ISP connection up to 10 Gbps	No	No
Fiber ONT	Fiber-optic signal conversion	Depends on ISP setup	Sometimes

Troubleshooting, Common Mistakes, and Best Practices

One of the most common sources of confusion in home networking is misdiagnosing which device is causing a problem. If you can't reach the internet at all, the issue is most likely the modem or your ISP's line — unplug the modem for 30 seconds and plug it back in before doing anything else. If some devices connect and others don't, or if your Wi-Fi drops but the connection light on the modem stays solid, the problem is almost certainly the router. Knowing this boundary saves enormous amounts of troubleshooting time.

A frequent mistake is placing a router behind a modem–router gateway without disabling the gateway's routing function first. This creates a condition called double NAT, where two devices are both performing NAT translation. Double NAT causes problems with online gaming, video calls, VPNs, and port forwarding. The fix is to put the gateway into "bridge mode" (which disables its routing/NAT) so your standalone router handles all those duties cleanly.

Security is another area where the modem–router distinction matters. The modem itself has almost no configurable security settings — your security posture lives in the router. Regularly reviewing your Wi-Fi security settings and keeping your router's firmware current are the most impactful things you can do to protect your network. The modem's firmware is typically updated automatically by the ISP.

• Reboot the modem first, then the router, and wait 60 seconds between each when troubleshooting connectivity
• Check the modem's signal levels in its admin interface (usually at 192.168.100.1) — upstream power outside −7 to +50 dBmV indicates a line problem
• If you own your modem, check the ISP's approved device list before upgrading your plan to ensure compatibility
• Enable bridge mode on gateway devices when using your own router to eliminate double NAT and unlock full router features

Pro Tip: Not sure whether your slow speeds are a modem issue or a router issue? Run a speed test with a laptop plugged directly into the modem via Ethernet (bypassing the router entirely). If speeds are still slow, the problem is the modem or ISP line. If speeds jump back to normal, the bottleneck is your router — use our slow Wi-Fi troubleshooting guide to resolve it.

Frequently Asked Questions

Can I use a router without a modem?

A router alone cannot connect you to the internet — it needs a modem (or an equivalent device like a fiber ONT) to receive the incoming internet signal from your ISP and translate it into something the router can use. Without a modem, the router can still create a local network so devices can talk to each other, but none of them will have internet access. Think of the modem as the front door and the router as the hallway distributing access to every room.

What is a modem–router combo (gateway), and should I use one?

A gateway device combines a modem and router into a single box, which is what most ISPs provide by default. Gateways are convenient and reduce cable clutter, but they're usually less powerful than dedicated standalone devices and can make it harder to upgrade one component at a time. If you're a casual user who just wants things to work, a gateway is fine; if you want better Wi-Fi range, advanced routing features, or the ability to independently replace a failing component, a separate modem and router is the better long-term setup.

How do I know if my modem or my router is causing internet problems?

Plug a laptop directly into the modem's Ethernet port, bypassing the router entirely, and run a speed test or try to browse the web. If the connection works normally from the modem but not through the router, the router is the problem. If the connection is still broken or slow directly from the modem, the issue is with the modem itself or your ISP's line — contact your ISP with the modem's signal level data from its admin page.

What's the difference between a public IP address and a private IP address?

Your modem receives one public IP address from your ISP — this is your home's address on the global internet, visible to every website you visit. Your router then creates private IP addresses (like 192.168.1.2, 192.168.1.3, and so on) for each device inside your home using NAT; these private addresses are invisible outside your network. You can check your current public IP address to see what the internet sees when your devices connect.

Does upgrading my router improve internet speed?

A router upgrade can improve the speed and reliability of Wi-Fi connections within your home, but it cannot increase the maximum speed your ISP delivers — that ceiling is set by your plan and your modem's capabilities. If your devices are close to the router and connected via Ethernet, upgrading the router will have little effect on raw internet speeds. The biggest gains from a router upgrade come in Wi-Fi range, handling many simultaneous devices, and reducing congestion in busy households.

What is DOCSIS and why does the version matter?

DOCSIS (Data Over Cable Service Interface Specification) is the standard that governs how cable modems communicate with your ISP's network. DOCSIS 3.0 supports bonded channels up to roughly 1 Gbps downstream in ideal conditions, while DOCSIS 3.1 supports up to 10 Gbps and is required for true gigabit cable plans. If your ISP upgrades your plan to gigabit speeds but your modem only supports DOCSIS 3.0, you'll never see those speeds regardless of how good your router is — the modem is the bottleneck.
