VLSM Explained: Variable Length Subnet Masking for Beginners

Variable Length Subnet Masking (VLSM) is one of the most powerful tools in a network engineer's toolkit, letting you carve up an IP address space with surgical precision instead of wasting entire blocks on tiny networks. If you've ever wondered why some subnets use /24 while others use /30, VLSM is the answer. Understanding VLSM explained from the ground up will transform the way you think about IP addressing and network design.

In this guide you'll learn exactly what VLSM is, how to perform VLSM calculations step by step, and how to avoid the most common mistakes beginners make when designing subnets. Whether you're studying for a networking certification or just trying to make sense of your home or small-office network, understanding IP addressing fundamentals — including concepts like what an IP address actually is and how DHCP assigns them automatically — will give you a rock-solid foundation before diving into VLSM.

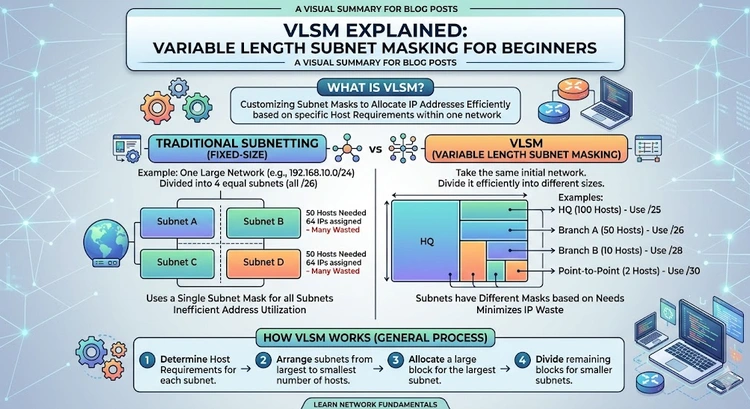

What Is VLSM and Why Does It Matter?

Before VLSM existed, network administrators used Classful addressing, which forced every subnet in a network to use the same subnet mask. If you needed one subnet with 100 hosts and another with just 2 hosts, both had to wear the same-sized mask — an enormous waste of address space. VLSM, standardized in RFC 1009 and later reinforced through Classless Inter-Domain Routing (CIDR), broke that restriction entirely. Each subnet can now have its own mask, sized precisely to the number of hosts it needs.

At its core, a subnet mask is a 32-bit number that divides an IP address into a network portion and a host portion. Written in CIDR notation, the prefix length (like /24 or /26) tells you how many bits belong to the network. A /24 mask leaves 8 bits for hosts, giving you 254 usable addresses (2&sup8; − 2, subtracting network and broadcast). A /26 leaves 6 bits, giving 62 usable addresses. VLSM simply means you're allowed to mix and match these prefix lengths within a single parent network block, assigning the right size to each segment.

Consider a company with the address block 192.168.10.0/24 that needs four subnets: one for 100 workstations, one for 50 printers, one for 25 servers, and one for 2 routers connected by a point-to-point link. Without VLSM you'd have to split /24 into four equal /26 blocks (62 hosts each), wasting almost every address in the router link subnet. With VLSM you can assign a /25 (126 hosts) to workstations, a /26 (62 hosts) to printers, a /27 (30 hosts) to servers, and a /30 (2 hosts) to the router link — using address space efficiently.

VLSM is also the reason modern routing protocols like OSPF, EIGRP, and BGP exist in their current form. - our OSPF Cost Calculator works out interface cost from reference bandwidth if you're configuring OSPF These protocols carry subnet mask information alongside route prefixes, making VLSM-aware routing possible. Older protocols like RIPv1 did not carry mask information and therefore could not support VLSM. If you're configuring a modern router, you're almost certainly already benefiting from VLSM whether you realize it or not.

How to Perform VLSM Subnetting Step by Step

Follow this process every time you need to design a VLSM address scheme. Working through it methodically eliminates overlap errors and wasted space.

1. List all subnets ordered by size, largest first — Write down every subnet you need and how many hosts each requires. Sort them from the most hosts to the fewest. Starting with the largest subnet prevents you from boxing yourself into a corner where a big subnet won't fit later in the address space.
2. Determine the required prefix length for each subnet — For each subnet, find the smallest power of two that is greater than or equal to the number of hosts plus two (for the network address and broadcast address). The formula is: prefix length = 32 − log₂(hosts + 2), rounded up. A subnet needing 50 hosts requires 6 host bits (2&sup6; = 64 ≥ 52), so use a /26.
3. Assign the first (largest) subnet starting at the network address — Take your parent network block (e.g., 192.168.10.0/24) and allocate the first chunk to your biggest subnet. If that's a /25, the first subnet is 192.168.10.0/25, covering .0 through .127. Record the network address, broadcast address, usable host range, and subnet mask for each allocation.
4. Assign each subsequent subnet starting immediately after the previous one — The next subnet starts at the address immediately following the broadcast address of the previous subnet. After 192.168.10.0/25 (broadcast .127), the next subnet starts at 192.168.10.128. If it's a /26, that gives you 192.168.10.128/26 covering .128 through .191. Continue down the list until all subnets are assigned.
5. Verify there are no overlaps and document remaining space — After assigning all subnets, check that no address range appears in more than one subnet. Note any unallocated blocks — these are your reserved space for future growth. Use a tool like the subnet calculator to double-check your work before implementing it on live equipment.

VLSM Subnet Size Reference Table

This table shows the most commonly used CIDR prefix lengths, how many host addresses each provides, the default subnet mask, and a typical use case to help you pick the right size at a glance.

Prefix	Subnet Mask	Usable Hosts	Typical Use Case
/30	255.255.255.252	2	Point-to-point router links
/29	255.255.255.248	6	Small management segments
/27	255.255.255.224	30	Small office server subnets
/26	255.255.255.192	62	Department or floor segments
/25	255.255.255.128	126	Medium office LAN segments
/24	255.255.255.0	254	Standard enterprise LAN

Common VLSM Mistakes and How to Avoid Them

VLSM errors are easy to make and can cause serious network outages, especially on routed networks where overlapping subnets create routing loops or black holes. The most frequent mistake beginners make is assigning subnets out of order — starting with a small subnet and then trying to fit a large one afterward, only to find the address space is already fragmented. Always allocate largest-first. Another common pitfall is forgetting to account for the network and broadcast addresses when sizing subnets, which leads to choosing a mask that's one size too small and leaves you one host short.

When working on real networks, always cross-reference your subnet plan against the existing IP scheme before making changes. If your router or firewall is already configured, check the current interface addresses to ensure your new subnets don't conflict. You may also want to review your static IP configuration for any devices that have manually assigned addresses, since those could fall outside a new subnet boundary if you're re-subnetting an existing block. Documentation is your best friend here — a simple spreadsheet tracking every subnet, its purpose, assigned hosts, and remaining capacity can save hours of troubleshooting later.

• Always sort subnets from largest to smallest before you start assigning addresses — never allocate ad hoc
• Double-check every subnet boundary: the first address is always the network ID, the last is always broadcast
• Never reuse or overlap address ranges, even across different VLANs or interfaces on the same router
• Leave documented reserved space at the end of each block for future expansion rather than allocating to the last address

Pro Tip: After you've designed your VLSM scheme on paper, plug each subnet into the subnet calculator tool to instantly verify the network address, broadcast address, and usable host range. It takes less than a minute and catches arithmetic errors before they reach your live infrastructure.

Frequently Asked Questions

What is the difference between VLSM and CIDR?

VLSM and CIDR are closely related but not identical. CIDR (Classless Inter-Domain Routing) is the broader system that allows any prefix length regardless of the old Class A/B/C boundaries, primarily used for route aggregation on the internet. VLSM is the specific technique of using different prefix lengths within a single organization's address block to size each subnet individually. In practice, VLSM is enabled by CIDR, and the two terms are often used interchangeably in certification study materials even though they have distinct meanings. You can use our subnet calculator to practice both concepts.

Do I need VLSM for a home network?

For a typical home network with a single router and one LAN segment, you don't need VLSM — your router handles subnetting automatically through DHCP. VLSM becomes valuable when you start creating multiple network segments, such as a separate guest network, an IoT VLAN, or a home lab with multiple subnets. As soon as you have more than one subnet with different size requirements, VLSM lets you allocate address space efficiently rather than wasting entire /24 blocks on a two-device segment.

What is a /30 subnet and when should I use it?

A /30 subnet (mask 255.255.255.252) contains exactly 4 IP addresses: one network address, two usable host addresses, and one broadcast address. It's the standard choice for point-to-point links between two routers, where you only need to address both ends of a serial or Ethernet link. Using a /30 instead of a /24 on a router-to-router link saves 252 host addresses that would otherwise be permanently wasted. Some administrators now use /31 subnets (RFC 3021) for point-to-point links on modern equipment, eliminating the broadcast address entirely.

How does VLSM affect my router configuration?

Modern routers handle VLSM transparently — you simply assign each interface its IP address and the correct subnet mask, and the router builds its routing table accordingly. The key requirement is that your routing protocol must be VLSM-aware, meaning it must advertise subnet mask information with each route. OSPF, EIGRP, RIPv2, and BGP all support VLSM. If you're running a simple home router, VLSM is already built into the firmware and you benefit from it automatically even without configuring it manually.

Can VLSM be used with IPv6?

IPv6 uses the same CIDR prefix-length notation and the same concept of variable-length prefixes, so the underlying idea of VLSM fully applies to IPv6 networks. However, because IPv6 has an astronomically larger address space (128-bit addresses), address conservation is far less of a concern, and most IPv6 designs simply assign a /64 to every LAN segment regardless of size. The VLSM technique of carefully sizing each subnet is therefore far more critical and commonly applied in IPv4 environments where address space is scarce.

What is the largest and smallest subnet you can create with VLSM?

Within a /24 parent block, you can create subnets ranging from a /25 (126 hosts) all the way down to a /30 (2 hosts) or even /32 (a single host route, used for loopback interfaces). The practical minimum for a general-purpose LAN subnet is /30, giving you two usable host addresses. There's no enforced maximum within VLSM — you could technically use the entire /24 as a single flat subnet for 254 hosts, which is valid VLSM even if it's just a single subnet. The power of VLSM lies in mixing these sizes within the same parent block to match real-world requirements exactly.
