by Priya Nakamura Updated Apr 23, 2026
Smart home devices are convenient, but they're also among the least secure gadgets on your network — and setting up a separate VLAN for IoT devices is one of the most effective ways to protect your personal data from a compromised smart bulb or budget security camera. An IoT VLAN creates a virtual wall between your laptops and phones and the growing army of connected devices in your home, so even if one device gets hacked, your main network stays clean. In this guide, you'll learn exactly how to configure an IoT VLAN from scratch, step by step.
By the end of this guide you'll understand what a VLAN is, why isolating IoT devices matters for your home security, and how to configure your router and managed switch to create a fully segmented IoT network. If you've already explored options like a guest network for visitors, a dedicated IoT VLAN takes that same isolation concept much further with granular firewall rules and persistent VLAN tagging. We'll also cover how to check your Wi-Fi security settings to make sure your new VLAN uses the strongest available encryption.
A VLAN, or Virtual Local Area Network, is a logical partition of your physical network. Instead of buying extra hardware to create completely separate networks, your router and switch use VLAN tags — small numerical identifiers — to keep traffic from different groups of devices isolated from one another, even when they share the same physical cables or Wi-Fi access point. Think of it like separating passengers on a train into different cars: they're all on the same train, but they can't move between cars unless a conductor (your firewall rules) explicitly allows it.
IoT devices present a unique security challenge because manufacturers often prioritize cost and time-to-market over long-term security patching. A smart TV, a Wi-Fi-connected thermostat, or a baby monitor may run outdated firmware with known vulnerabilities for months or years after a patch is available — or it may never receive a patch at all. If that device shares a flat network with your laptop, an attacker who compromises it can attempt to reach every other device on the same subnet, scan for open shares, intercept traffic, and pivot to more sensitive systems.
Placing IoT devices on their own VLAN means that even a fully compromised smart plug can only communicate with whatever your firewall rules permit — typically just the internet and perhaps a local hub like Home Assistant. Your NAS, your work laptop, and your phone live on a completely different subnet that IoT devices cannot reach unless you explicitly open a firewall rule. This is sometimes called "lateral movement prevention," and it's the same principle large enterprises use to segment their internal networks.
It's worth distinguishing an IoT VLAN from a simple guest network. A guest network is quick to set up but offers limited control: you generally can't define precise firewall rules, assign static IPs, or integrate it with a managed switch's port-level VLAN tagging. A dedicated VLAN gives you all of those capabilities, along with the ability to route, monitor, and log traffic from IoT devices independently of your primary network.

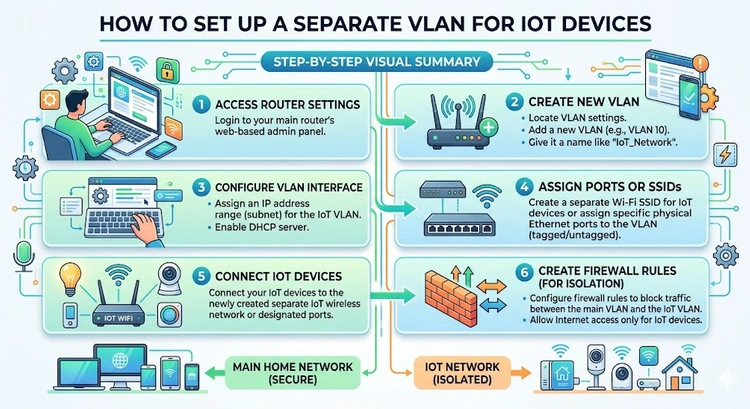

The exact menus vary by router firmware (pfSense, OpenWrt, Ubiquiti UniFi, and consumer routers like ASUS Merlin or Netgear Orbi all differ), but the logical steps are identical across all platforms.
Different router firmware and ecosystems handle VLAN configuration differently. Here's a quick reference to help you choose the right path for your hardware.
| Platform | VLAN Support | Managed Switch Needed? | Difficulty |
|---|---|---|---|
| pfSense / OPNsense | Full 802.1Q tagging | Optional (for wired ports) | Intermediate |
| Ubiquiti UniFi | Full VLAN & SSID binding | Built-in (UniFi switches) | Easy via UI |
| OpenWrt | Full 802.1Q tagging | Optional | Intermediate |
| ASUS Merlin | Basic VLAN on some models | Recommended | Intermediate |
| Stock consumer firmware | Guest network only (limited) | Not applicable | Easy but limited |
Consider pointing your IoT VLAN's DHCP server to a different DNS resolver than your main network — for example, a Pi-hole instance or a filtering DNS service like Cloudflare's 1.1.1.3 (malware blocking). This lets you block known IoT telemetry and ad domains at the DNS level without affecting your main devices. You can learn how to change DNS on your router and apply the same logic per-VLAN in most advanced firmware.
Even with a careful setup, IoT VLANs can produce some puzzling failures. The most common issue is devices that rely on mDNS (Multicast DNS) or UPnP for discovery — protocols like Apple HomeKit, Google Cast, and Amazon Echo use these to find devices on the local network, and by default mDNS doesn't cross VLAN boundaries. If your smart speaker can no longer find your smart TV after moving it to the IoT VLAN, mDNS isolation is almost certainly why.
The fix is to run an mDNS repeater or reflector (such as Avahi on OpenWrt, or the built-in mDNS repeater in pfSense) that listens on both VLANs and rebroadcasts service announcements across the boundary. You define exactly which service types get repeated, keeping the isolation intact while allowing discovery to work. A similar approach applies to UPnP: disable UPnP entirely on the IoT VLAN's WAN-facing side, and use explicit port forwarding rules for any device that genuinely needs an inbound port open.
Periodically audit which devices are on your IoT VLAN and confirm they belong there. New devices sometimes connect to the wrong SSID. Use your router's DHCP lease table or a tool like the one at /check-who-is-on-my-wifi/ to see every connected client and verify MAC addresses match expected devices. Keep your router firmware up to date as well; VLAN handling bugs have appeared and been patched in several popular firmware versions.
Pro Tip: After setting up your IoT VLAN, use our Port Checker tool to verify that no unintended ports on your IoT devices are reachable from your main LAN — this gives you quick confirmation that your firewall rules are working as expected without needing to run a full port scanner.
For wireless-only IoT devices, you don't need a managed switch — binding a dedicated SSID to your IoT VLAN handles isolation entirely through Wi-Fi. You only need a managed switch if you have wired IoT devices (like a smart TV connected via Ethernet) that need to be placed on the IoT VLAN, since an unmanaged switch can't tag or separate traffic by VLAN ID. Entry-level managed switches from TP-Link, Netgear, or Cisco start around $30–$50 and are well worth it if you have wired smart devices.
Yes — as long as you add a firewall rule allowing the IoT VLAN to route outbound traffic through your router's WAN interface, all devices on that VLAN will have full internet access. The VLAN only blocks lateral traffic between your IoT subnet and your main LAN subnet; it doesn't restrict internet-bound traffic unless you explicitly add rules to do so. Many users also add DNS filtering at this stage to block known malicious or telemetry domains used by certain smart home devices.
A guest network is a quick alternative, but it gives you far less control than a dedicated VLAN. Guest networks typically prevent device-to-device communication automatically, but they don't allow custom firewall rules, per-VLAN DNS settings, or integration with managed switch port assignments. If you only have a handful of simple IoT devices and your router doesn't support full VLANs, a guest network is better than nothing — see our guest network setup guide for that approach.
There is no universally required VLAN ID for IoT devices — any number from 2 to 4094 works, and the choice is purely organizational. Common conventions are VLAN 20 or VLAN 30 for IoT, keeping VLAN 1 (the default) for management traffic or your primary LAN. Avoid VLAN 1 for production traffic on managed switches, as it's the default untagged VLAN and can create security issues if not carefully managed on trunk ports.
Voice assistants and smart speakers rely on cloud services for most functions, so they only strictly need internet access — they don't need to reach your phone directly on the local network. However, local control features (like casting audio from your phone to a speaker) use mDNS or protocols like Google Cast, which need cross-VLAN mDNS reflection to work. Setting up an mDNS repeater on your router resolves this while keeping the VLANs fully isolated for all other traffic types.
Always export your router's configuration backup before performing a firmware update, as some updates — particularly major version jumps — reset VLAN and firewall settings to defaults. After the update, import your backup or manually verify that VLAN interfaces, DHCP scopes, SSID-to-VLAN bindings, and firewall rules are all intact before reconnecting devices. Keeping a written or exported record of your VLAN IDs and firewall rule order is especially important; see our guide on how to update router firmware safely for a full checklist.
For authoritative networking standards and specifications, refer to the Internet Assigned Numbers Authority (IANA) or IETF RFC documents.
 |
 |
 |
 |
