by Priya Nakamura Updated Apr 23, 2026
Every device on your home network — your phone, laptop, smart TV, and gaming console — can browse the internet simultaneously, yet your ISP only assigns you a single public IP address. NAT explained simply: Network Address Translation is the technology inside your router that makes this possible, acting as a traffic coordinator between your private home network and the public internet.
In this guide you will learn exactly what NAT is, how it works step by step, the different types available, and how to troubleshoot common NAT-related problems. If you have ever struggled with port forwarding or wondered why your devices each get a different local IP address, understanding NAT will make everything click — and you can learn more about those local addresses in our guide to IP addresses.

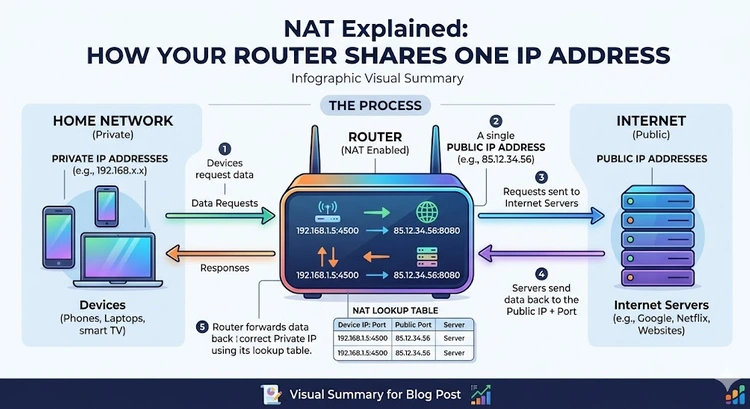

Network Address Translation (NAT) is a method by which your router rewrites the source or destination IP address in packet headers as traffic passes through it. When a device on your home network sends a request to the internet, your router replaces that device's private IP address (such as 192.168.1.105) with your single public IP address before forwarding the packet. The router simultaneously records this substitution in a table called the NAT translation table so it knows which device to send the reply back to.
The private IP address ranges used inside home networks — 192.168.0.0/16, 10.0.0.0/8, and 172.16.0.0/12 — are defined by IANA specifically for internal use and are never routed on the public internet. This means millions of home networks can all use the same internal address ranges without conflict because those addresses are invisible outside the router. Only the public IP assigned by your ISP is exposed to the wider internet.

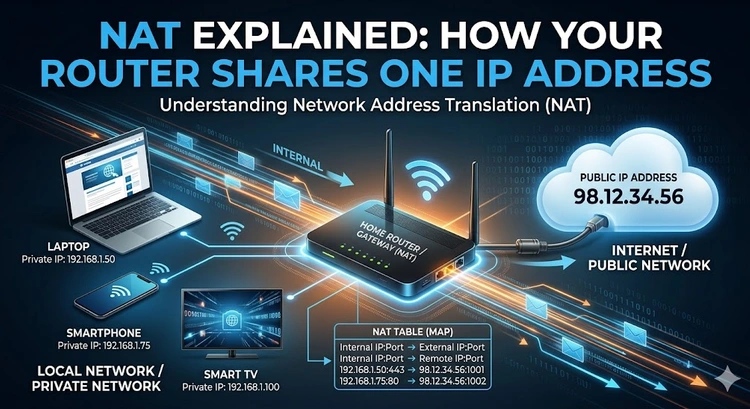

To distinguish between multiple simultaneous connections from different devices, NAT uses port numbers alongside IP addresses. When your laptop (192.168.1.10) opens a browser tab and your phone (192.168.1.11) also loads a webpage at the same time, the router assigns each outgoing connection a unique source port number. For example, your laptop's request might leave with source port 51234 and your phone's with 51235, both using the same public IP. When replies come back, the router checks its translation table, matches the port number, and delivers each reply to the correct device.
This most common form of NAT is technically called PAT — Port Address Translation — or sometimes "NAT overload." It is what virtually every home router uses by default. The translation table is held in the router's memory and entries are created on demand as devices open connections, then expire after a period of inactivity. This is why your router handles dozens of simultaneous connections across all your devices without any manual configuration from you.
Most home users never need to change NAT settings, but knowing how to inspect and adjust them is useful when troubleshooting connectivity problems or setting up services like game servers or security cameras.
There are four main NAT behaviors you may encounter, each with different implications for how easily external connections can reach your devices. Understanding the differences matters especially for gaming, video conferencing, and peer-to-peer applications.
| NAT Type | Also Called | Inbound Connections | Best For |
|---|---|---|---|
| Full Cone NAT | Open NAT | Any external host can reach mapped port | Gaming, P2P, hosting servers |
| Address-Restricted Cone | Restricted NAT | Only hosts you contacted first | General home use |
| Port-Restricted Cone | Port Restricted | Only same host & port you contacted | More secure general use |
| Symmetric NAT | Strict NAT | Only exact destination you opened to | Corporate / high-security networks |
| NAT64 | IPv6 Transition | Bridges IPv6 clients to IPv4 servers | ISPs migrating to IPv6 |
PlayStation consoles report NAT Type 1 (open/no NAT), Type 2 (moderate, typical home router), and Type 3 (strict, Symmetric NAT). Xbox uses Open, Moderate, and Strict. If your console shows Strict or Type 3, try enabling UPnP (Universal Plug and Play) in your router's settings — this allows the console to automatically create the port mappings it needs without manual configuration.
NAT works silently in the background most of the time, but certain symptoms point directly to NAT issues. The most common complaints are gaming connectivity problems, video call degradation, hosted services not being reachable from outside the home, and intermittent connection drops on devices behind the router. Each of these has a known cause rooted in how NAT handles specific traffic types.
Connection timeouts on long-idle sessions happen because the router clears NAT table entries after a period of inactivity to conserve memory. Applications that keep persistent connections (like SSH tunnels or database clients) can suddenly appear to disconnect even though the underlying network is fine. You can extend the NAT timeout in your router's advanced settings, or configure the application to send keepalive packets. Similarly, if you have DHCP handing out new IP addresses and your port forwarding rules point to old addresses, services will mysteriously stop responding — DHCP reservations solve this cleanly.
Double NAT is a frequently overlooked problem that occurs when two devices are both performing NAT in series — for instance, an ISP-supplied modem-router combined unit followed by your own router. Devices behind the second router end up translated twice, which breaks many applications and complicates port forwarding significantly. Use our ping test tool to check for unusual latency hops, and if you suspect double NAT, put the ISP device into bridge mode so only your router handles NAT.
Pro Tip: Before assuming a NAT problem, use the port checker tool to verify whether a specific port is actually reachable from outside your network. This immediately confirms whether your port forwarding rule is working or whether NAT, a firewall, or your ISP is blocking the traffic.
NAT (Network Address Translation) allows your router to share one public IP address among all devices on your home network. Each time a device sends traffic to the internet, the router replaces the device's private IP address with your single public IP, then tracks the connection so it can deliver replies to the correct device. Without NAT, every device would need its own unique public IP address, which IPv4 addresses cannot supply at the scale of modern homes.
IPv4 only supports about 4.3 billion unique addresses, which is far fewer than the number of internet-connected devices worldwide. NAT was introduced as a practical solution to IPv4 exhaustion, allowing thousands of private networks to reuse the same internal address ranges without conflict. IPv6 was designed to eventually replace NAT by providing enough addresses for every device, but NAT remains dominant on home networks while IPv6 adoption continues.
NAT provides a degree of incidental protection because devices behind NAT are not directly addressable from the internet — unsolicited inbound packets are simply dropped by default. However, NAT is not a firewall and should not be relied upon as your primary security mechanism. For stronger protection, review your router's Wi-Fi security settings and ensure your router's firewall is enabled.
NAT translates IP addresses to share one public IP among many devices; a firewall inspects packets and enforces rules about which traffic is permitted or blocked. They are complementary but distinct functions. Most home routers perform both simultaneously — NAT handles address translation while the built-in stateful firewall blocks unrequested inbound traffic. You can have NAT without a firewall and vice versa, though running both is standard practice.
Port forwarding creates a static entry in the NAT table that maps a specific external port on your public IP to a specific internal device and port. Normally NAT only allows connections that were initiated from inside your network; port forwarding is the mechanism that permits external connections to reach a device inside your network on demand. It is essential for hosting game servers, web servers, or accessing security cameras remotely — learn the full process in our port forwarding guide.
IPv6 was designed with enough address space (340 undecillion addresses) that every device could have a globally unique public address, removing the need for NAT entirely. In an all-IPv6 world, your devices would connect directly without address translation. In practice, however, most home networks still operate in a dual-stack or IPv4-primary mode, and NAT will remain a fundamental part of home networking for many years during the gradual IPv6 transition.
For authoritative networking standards and specifications, refer to the Internet Assigned Numbers Authority (IANA) or IETF RFC documents.
 |
 |
 |
 |
About Priya Nakamura
Priya Nakamura is a telecommunications engineer and networking educator with a Master degree in Computer Networks and a background in ISP infrastructure design and management. Her experience spans both the technical architecture of broadband networks and the practical challenges home users face when configuring routers, managing wireless coverage, and understanding connectivity standards. At RouterHax, she covers WiFi standards and protocols, networking concepts, IP addressing, and network configuration guides.
