How to Subnet a Network: Step-by-Step for Beginners

Learning how to subnet a network is one of the most valuable skills you can develop as a home user, IT student, or aspiring network engineer. Subnetting lets you divide a single IP address range into smaller, more manageable segments — giving you greater control over traffic, security, and performance. If the concept has always seemed intimidating, this step-by-step guide will make it click.

In this guide you will learn what subnetting is, how subnet masks work, and how to calculate subnets by hand — plus shortcuts that save time. Understanding subnetting also helps you make smarter decisions about what an IP address actually is and how your router assigns them via DHCP.

What Is Subnetting and Why Does It Matter?

Subnetting is the process of splitting a larger IP network into smaller logical sub-networks, called subnets. Think of it like dividing a large apartment building into separate floors — each floor has its own set of rooms, but they all share the same street address. In networking terms, devices on the same subnet can communicate directly with each other, while traffic destined for a different subnet must pass through a router. Our Same Subnet Checker confirms whether two IP addresses fall in the same subnet.

Every IPv4 address is a 32-bit number written as four octets separated by dots, for example 192.168.1.0. Alongside this address, a subnet mask tells devices which portion of that address identifies the network and which portion identifies individual hosts. A subnet mask of 255.255.255.0 means the first 24 bits are the network portion and the remaining 8 bits identify up to 254 usable hosts on that segment.

The modern shorthand for expressing subnet masks is CIDR notation (Classless Inter-Domain Routing). Instead of writing 255.255.255.0, you simply append /24 to the IP address — as in 192.168.1.0/24. The number after the slash tells you how many bits are used for the network portion. This notation is compact, unambiguous, and universally understood by routers and operating systems alike.

Why does any of this matter at home or in a small office? Subnetting lets you isolate your IoT devices from your main computers, segment guest traffic from trusted traffic, and reduce unnecessary broadcast chatter on busy networks. Even if you only manage a single home router, understanding subnets helps you configure static IPs, set up port forwarding, and troubleshoot connectivity problems far more effectively.

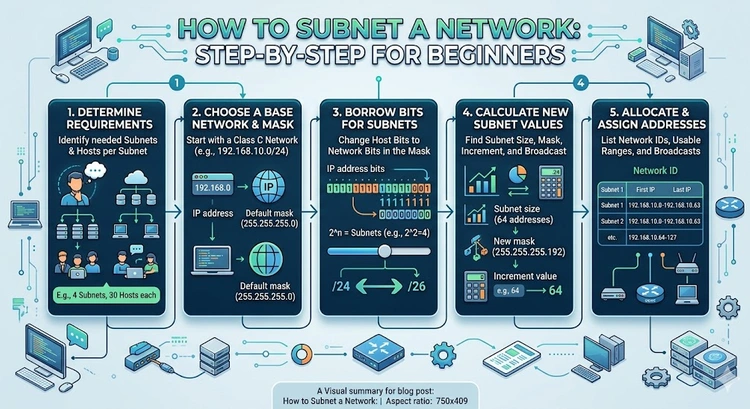

How to Subnet a Network: Step-by-Step

Follow these steps in order and you will be able to design and document a basic subnet scheme from scratch.

1. Determine your address space and requirements — Start by identifying the IP block you are working with (for example, 192.168.10.0/24) and how many subnets and hosts per subnet you need. Write these numbers down before touching any calculator, because every calculation that follows depends on them. If you need 6 subnets each holding at least 25 hosts, those two constraints will drive everything else.
2. Calculate the number of bits needed for subnets — The formula is 2ⁿ ≥ required subnets, where n is the number of bits you will borrow from the host portion. For 6 subnets, 2³ = 8, so you need to borrow 3 bits. Add those borrowed bits to your original prefix length: /24 + 3 = /27. Your new subnet mask is /27, or 255.255.255.224 in dotted-decimal.
3. Calculate available hosts per subnet — With a /27 mask, you have 32 − 27 = 5 bits left for hosts. The formula is 2⁵ − 2 = 30 usable host addresses. You subtract 2 because the first address in every subnet is the network address (identifies the subnet itself) and the last is the broadcast address (sends to all hosts on the subnet). Confirm 30 hosts per subnet satisfies your requirement of 25 — it does.
4. List all subnet ranges — The block size for a /27 is 256 − 224 = 32. Starting at 192.168.10.0, the subnets increment by 32: .0/27, .32/27, .64/27, .96/27, .128/27, .160/27, and so on. For each subnet, the usable host range runs from the network address plus one to the broadcast address minus one. For 192.168.10.32/27, usable hosts are 192.168.10.33 through 192.168.10.62, and the broadcast is 192.168.10.63.
5. Document and assign your subnets — Create a simple table mapping each subnet to its purpose (e.g., Subnet 1 = Main LAN, Subnet 2 = IoT devices, Subnet 3 = Guest Wi-Fi). Note the network address, usable host range, broadcast address, and subnet mask for each one. Consistent documentation prevents overlapping assignments and makes troubleshooting dramatically faster when something breaks months later.

Common Subnet Masks & CIDR Reference

The table below covers the most frequently used subnet masks for home and small-business networks. Use it as a quick reference when configuring your router or verifying an existing setup.

CIDR Prefix	Subnet Mask	Usable Hosts	Typical Use Case
/24	255.255.255.0	254	Standard home & small office LAN
/25	255.255.255.128	126	Split a /24 into two equal halves
/26	255.255.255.192	62	Department segments, VLANs
/27	255.255.255.224	30	Small teams, IoT isolation
/28	255.255.255.240	14	Point-to-point links, server clusters
/30	255.255.255.252	2	Router-to-router WAN links

Troubleshooting Subnetting Mistakes & Best Practices

Even with a solid understanding of the math, it is easy to make configuration errors that leave devices unable to reach each other or the internet. The most common culprit is a mismatched subnet mask — when a device uses 255.255.255.0 but the router expects 255.255.255.128, the device calculates the wrong network boundary and sends traffic to the wrong place. Always verify that every device on a subnet shares an identical mask. If you are assigning static IPs, double-check your work against the static IP setup guide to ensure your gateway address falls within the correct subnet range.

Another frequent mistake is overlapping subnet ranges. If you assign 192.168.1.0/25 to one interface and 192.168.1.64/26 to another, those ranges overlap and the router will behave unpredictably. Always lay out your full address plan on paper or in a spreadsheet before touching any device configuration. Giving each subnet a clear, non-overlapping block from the start prevents conflicts that are notoriously difficult to diagnose after the fact.

For home users adding a guest network or segregating smart home devices, the simplest approach is to let your router handle the second subnet automatically. Most modern routers support a guest network feature that places guests on a separate /24 with no visibility into your main LAN. This achieves the core security benefit of subnetting with almost no manual configuration required.

• Always reserve the first usable IP in each subnet for the default gateway (router interface) so it is easy to remember
• Keep a printed or cloud-saved subnet map so you can quickly identify which range a device belongs to during outages
• Never assign the network address or broadcast address to a device — these are reserved and will cause silent failures
• Use /30 (2 usable hosts) for any point-to-point link between two routers to avoid wasting address space

Pro Tip: After designing your subnets, use the Subnet Calculator to generate the full host range for each block, then cross-reference with your DHCP scope settings to make sure your dynamic IP pool never overlaps with your statically assigned addresses.

Frequently Asked Questions

What is the easiest way to subnet a network for beginners?

The easiest approach is to start with a /24 block (192.168.x.0 — 255.255.255.0) and borrow bits from the host portion to create smaller subnets. Use the Subnet Calculator to do the binary math automatically while you focus on understanding the logic. Once you have done it manually a few times, the pattern becomes intuitive.

What is the difference between a subnet mask and CIDR notation?

A subnet mask (e.g., 255.255.255.0) and CIDR notation (e.g., /24) express exactly the same information in different formats. CIDR notation simply counts the number of consecutive 1-bits in the mask, which is more compact and less error-prone to type. Modern equipment accepts both formats, but CIDR is the standard in documentation and command-line tools.

How many hosts can I fit on a /24 subnet?

A /24 subnet provides 256 total addresses, but two are reserved: the network address (.0) and the broadcast address (.255). That leaves 254 usable host addresses. For most home networks this is more than sufficient, but larger offices sometimes split a /24 into multiple /25 or /26 subnets for organizational reasons.

Can I subnet my home network without special hardware?

Yes — any modern home router supports multiple subnets, especially when a guest network is enabled. Some routers also support VLANs, which let you create fully isolated subnets on the same physical switch. Check your router’s advanced settings or firmware documentation to see what subnet and VLAN options are available.

What happens if two devices are on different subnets?

Devices on different subnets cannot communicate directly — all traffic between them must pass through a router or layer-3 switch. If your default gateway is misconfigured or the router does not have routes for both subnets, connectivity will fail. This is actually a useful security feature: placing IoT devices on a separate subnet prevents them from reaching your computers even if they are compromised.

How do I choose the right subnet size for my network?

Start with your worst-case host count per segment, add 20–30% headroom for growth, then pick the smallest subnet that accommodates that number using the 2ⁿ − 2 formula. Avoid over-allocating large blocks like /16 for a handful of devices, as this wastes address space and can complicate routing. For home use, /24 or /25 subnets cover virtually every scenario you will encounter.
