by Priya Nakamura Updated Apr 23, 2026
Setting up a VPN on your router is one of the smartest upgrades you can make to your home network — it encrypts every device on your Wi-Fi automatically, without installing software on each one. Whether you want to protect your smart TV, gaming console, or a house full of phones, a router-level VPN has you covered from a single configuration point.
In this guide you will learn exactly how to configure a VPN client directly on your router, which protocols to choose, and how to troubleshoot the most common issues. Before you start, make sure you know how to find your router's IP address so you can access the admin panel — and if you have never changed your login credentials, check the default router password list first.
A VPN (Virtual Private Network) creates an encrypted tunnel between your device and a remote server operated by a VPN provider. All of your internet traffic is routed through that server, masking your real IP address from websites and your ISP. When you set up a VPN on a regular device like a laptop, only that device's traffic is protected. A router-level VPN extends that protection to every single device connected to your home network — automatically and transparently.
When your router acts as a VPN client, it establishes the encrypted tunnel on behalf of every device behind it. Your smart TV, gaming consoles, IoT thermostats, and phones all benefit without any additional configuration. From the perspective of any outside observer, every device in your home appears to share a single IP address belonging to the VPN server, rather than your home's real public IP. This is especially useful for devices that don't support VPN apps natively.
The tradeoff is processing overhead. Your router's CPU must encrypt and decrypt every packet passing through the tunnel. Consumer routers with weak processors can become a significant bottleneck, reducing speeds noticeably. Higher-end routers with dedicated hardware acceleration — such as those running DD-WRT, OpenWrt, or Asus Merlin firmware — handle this far better. Understanding your router's capabilities is the first step before committing to a router-wide VPN deployment.
Most VPN providers support the OpenVPN and WireGuard protocols for router setups, and many publish router-specific setup guides. OpenVPN has been the gold standard for years due to its maturity and compatibility, while WireGuard is newer, leaner, and significantly faster in benchmarks. The protocol you choose will affect both your setup complexity and your real-world throughput — we break down the differences in the comparison table below.

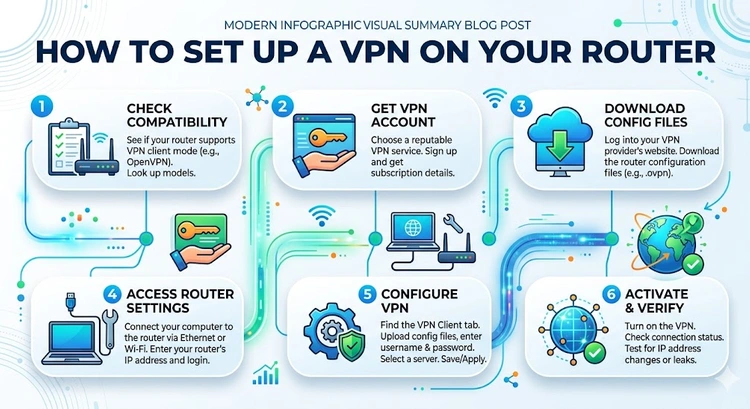

Follow these steps carefully. The exact menu names will vary slightly by router brand and firmware, but the sequence is the same for most modern routers.
Choosing the right protocol is critical for balancing speed, security, and compatibility on your specific hardware. Here is how the major options compare for router deployments.
| Protocol | Speed | Security | Router Compatibility |
|---|---|---|---|
| WireGuard | Very Fast | Excellent (ChaCha20) | Good (newer firmware required) |
| OpenVPN (UDP) | Moderate | Excellent (AES-256) | Excellent (wide support) |
| OpenVPN (TCP) | Slow | Excellent (AES-256) | Excellent (wide support) |
| IKEv2/IPSec | Fast | Very Good | Moderate (built-in on some) |
| L2TP/IPSec | Moderate | Good | Very Good (legacy support) |
WireGuard uses roughly 40% less CPU overhead than OpenVPN on the same hardware, which translates directly into higher throughput speeds on resource-constrained home routers. If your firmware supports WireGuard (DD-WRT build 44715+, OpenWrt 21.02+, or Asus Merlin 386.5+), always choose it over OpenVPN for day-to-day use. You can compare protocol performance in more detail with the VPN protocol comparison tool.
A VPN on your router introduces new variables into your network, and problems do come up. The most common issue is a DNS leak, where your DNS queries bypass the VPN tunnel and reveal your ISP to websites even while your traffic is encrypted. To prevent this, set your router's DNS servers to your VPN provider's DNS servers (or a privacy-respecting alternative like 1.1.1.1) rather than leaving it on your ISP's default. You can learn more about changing DNS settings in the DNS on router guide.
Speed degradation is the second most common complaint. If your VPN connection is significantly slower than your normal connection, try switching from OpenVPN to WireGuard, connecting to a geographically closer VPN server, or switching from TCP to UDP mode in OpenVPN. If speeds are still unacceptable, your router's CPU may simply be underpowered for full-speed VPN encryption — in that case, running the VPN only on specific devices rather than the whole router is a reasonable compromise.
Some streaming services and online games aggressively block known VPN IP ranges. If certain services stop working after enabling the router VPN, most providers and firmware options support "split tunneling" or policy-based routing, which lets you route specific devices or domains outside the VPN tunnel selectively. This gives you the best of both worlds — privacy for most traffic and unrestricted access for services that need it.
Pro Tip: After setting up your VPN, run a ping test to a server in your normal region and then to the VPN server location. If your ping to the VPN server is above 150ms, try a closer server — latency compounds with encryption overhead and will noticeably impact gaming and video calls.
No — most ISP-provided modems and budget routers only support VPN server mode or no VPN at all. To set up a VPN client on your router you need a model that supports it natively (like Asus, Netgear Nighthawk, or GL.iNet routers) or one that can run third-party firmware such as DD-WRT or OpenWrt. Check your router's specs or the DD-WRT compatibility database before purchasing a VPN subscription specifically for router use.
Yes, there is always some performance impact because your router's CPU must encrypt and decrypt every packet. On a modern router with hardware acceleration, the speed loss is typically 10–30%; on an older or budget router, you may lose 50% or more. Using WireGuard instead of OpenVPN and connecting to nearby VPN servers will minimize the impact significantly.
Running a VPN app on a device that is already behind a router VPN creates a double-VPN setup — your traffic is encrypted twice, which roughly doubles the latency and CPU overhead. This is rarely useful for everyday browsing. Most people either use the router VPN for whole-home protection or use per-device apps for flexibility, not both simultaneously.
WireGuard is the best choice for routers that support it — it is faster, uses less CPU, and is easier to configure than OpenVPN. If your firmware does not support WireGuard, use OpenVPN over UDP (not TCP) for the best speed and reliability. Avoid L2TP/IPSec unless OpenVPN and WireGuard are genuinely unavailable, as it has known cryptographic weaknesses.
Yes — that is one of the primary advantages of a router-level VPN. Any device that connects to your Wi-Fi or wired LAN, including smart TVs, gaming consoles, IoT devices, and printers, will have its traffic routed through the VPN tunnel automatically. Devices that do not support VPN apps natively (like most smart home hardware) get protection they could not otherwise have.
The fastest check is to visit /what-is-my-ip/ from any device on your network — the IP shown should be your VPN server's IP, not your real home IP. Also run a DNS leak test to confirm your DNS queries are routing through the VPN rather than leaking to your ISP. If both tests pass, your router VPN is working correctly.
For authoritative networking standards and specifications, refer to the Internet Assigned Numbers Authority (IANA) or IETF RFC documents.
 |
 |
 |
 |
