by Priya Nakamura Updated Apr 23, 2026
If you've ever configured a router access control list or tried to make sense of Cisco IOS commands, you've almost certainly stumbled across the confusing world of wildcard mask vs subnet mask — two values that look identical on the surface but behave in completely opposite ways. Understanding the key differences between a wildcard mask and a subnet mask is essential for anyone managing network security, routing protocols, or IP address planning.
In this guide, you'll learn exactly what each mask type does, when to use each one, and how to avoid the costly misconfiguration mistakes that even experienced administrators make. Whether you're working with IP address planning, setting up access control lists, or configuring OSPF routing areas, getting these two concepts straight will save you hours of troubleshooting. You may also want to use our subnet calculator to double-check your work as you follow along.
A subnet mask is a 32-bit number used alongside an IP address to divide a network into sub-networks, or subnets. It works by marking which bits of an IP address belong to the network portion and which bits belong to the host portion. In a subnet mask, consecutive 1-bits (from left to right) identify the network, and the remaining 0-bits identify individual hosts. For example, the subnet mask 255.255.255.0 (or /24 in CIDR notation) tells a device that the first 24 bits are the network and the last 8 bits are for hosts — yielding 254 usable host addresses on that subnet.
A wildcard mask, by contrast, is most commonly seen in Cisco router and firewall configurations, particularly in access control lists (ACLs) and OSPF routing protocol statements. Rather than defining a contiguous block of network bits, a wildcard mask uses 0-bits to mean "this bit must match exactly" and 1-bits to mean "this bit can be anything." In other words, it's essentially the inverse of a subnet mask. The wildcard mask 0.0.0.255 paired with a network address of 192.168.1.0, for example, means "match any IP address that starts with 192.168.1."
The most straightforward way to calculate a wildcard mask from a subnet mask is to subtract each octet of the subnet mask from 255. A subnet mask of 255.255.255.0 becomes a wildcard mask of 0.0.0.255. A subnet mask of 255.255.252.0 (used for a /22 network) becomes 0.0.3.255 as a wildcard mask. This inverse relationship holds true for standard, contiguous masks — but wildcard masks can also be non-contiguous, which is where they gain power and complexity beyond anything a subnet mask can express.
One key practical point: subnet masks are used by hosts and routers to determine whether a destination IP is on the local network or requires routing to another network. Wildcard masks are not used in that routing decision at all — they are exclusively a matching tool used in rule-based systems like ACLs, route maps, and OSPF network statements. Confusing the two in a router configuration is a very common mistake that leads to unintended traffic being permitted, denied, or misrouted.
Here is a practical walkthrough of how to work with both mask types correctly in real networking scenarios.
ip address 10.0.8.1 255.255.252.0). The router uses this value to build its routing table and decide whether traffic is local or must be forwarded. Never put a wildcard mask in an interface IP address command.permit ip 10.0.8.0 0.0.3.255 any. In OSPF, use: network 10.0.8.0 0.0.3.255 area 0. Using the subnet mask here instead of the wildcard mask is one of the most common configuration errors in Cisco environments.The table below summarizes the critical differences between subnet masks and wildcard masks across the most important categories.

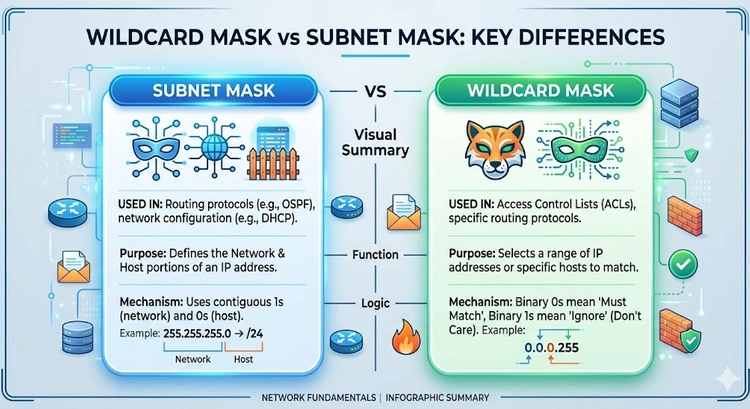

| Attribute | Subnet Mask | Wildcard Mask | Example |
|---|---|---|---|
| Bit meaning | 1 = network bit, 0 = host bit | 0 = must match, 1 = ignore (any) | 255.255.255.0 vs 0.0.0.255 |
| Structure | Always contiguous 1s then 0s | Can be non-contiguous (any pattern) | 0.255.0.255 is valid wildcard |
| Primary use | Interface config, routing decisions | ACLs, OSPF, route maps, BGP filters | ip address / access-list |
| Notation | Dotted-decimal or CIDR (/24) | Dotted-decimal only | 255.255.0.0 or /16 vs 0.0.255.255 |
| Derived from | Network prefix length | 255.255.255.255 minus subnet mask | /24 → 255.255.255.0 → 0.0.0.255 |
To convert any standard subnet mask to its wildcard mask equivalent, simply subtract each octet from 255. For 255.255.240.0, the wildcard mask is 0.0.15.255 — meaning your ACL will match all 4,096 addresses in that /20 block. Our free subnet calculator performs this conversion automatically and also shows you the full host range.
Mixing up subnet masks and wildcard masks is extraordinarily common, even among network engineers with years of experience. The damage from a misconfigured ACL can range from a minor annoyance — a single host unable to reach a server — to a catastrophic security hole that exposes an entire network segment to unauthorized access. Understanding the failure modes helps you diagnose problems faster when they arise.
One of the most frequent issues is accidentally entering the subnet mask (255.255.255.0) where a wildcard mask (0.0.0.255) is required in an ACL. On Cisco IOS, the router will often accept this without an error message, but the result is that the ACL matches a completely different — and usually unintended — set of IP addresses. Always double-check your ACL entries using the show ip access-lists command and verify matched packet counts against expected traffic. If you need to verify IP ranges, reviewing your DHCP scope alongside your ACL can help confirm the addresses you're targeting are correct.
Non-contiguous wildcard masks add another layer of complexity. A wildcard mask like 0.255.0.255 would match only addresses where the first and third octets are fixed and the second and fourth can be anything — a pattern no subnet mask can express. While powerful for advanced filtering, non-contiguous masks are hard to read and maintain. Reserve them for cases where they provide a clear operational benefit, and always document them with inline comments in your configuration.
network statement — always convert it to a wildcard mask firsthost keyword shortcut (e.g., permit ip host 192.168.1.10 any) instead of writing 0.0.0.0 wildcard masks for single hostsany keyword instead of writing 0.0.0.0 255.255.255.255 to match all addressesPro Tip: After configuring an ACL with wildcard masks, use our subnet calculator to visually confirm the IP range your wildcard covers matches your intended scope — paste in the network address and convert the wildcard back to a CIDR prefix to see the exact start and end addresses at a glance.
network statements that exclude one side of a link from the correct areaA subnet mask uses 1-bits to identify the network portion of an IP address and is used by routers and hosts to make routing decisions. A wildcard mask inverts this logic — 0-bits mean "must match" and 1-bits mean "ignore" — and is used in ACLs and routing protocol statements to define ranges of IP addresses for matching purposes. You can calculate a wildcard mask by subtracting the subnet mask from 255.255.255.255. For detailed IP address concepts, see our guide on what is an IP address.
Yes, and this is one of the most powerful distinctions between wildcard masks and subnet masks. Wildcard masks can have 0s and 1s in any order (e.g., 0.255.0.255), allowing you to match complex, non-contiguous address patterns that would be impossible to express with a standard subnet mask. However, non-contiguous wildcard masks are harder to read and maintain, so use them only when necessary and document them clearly.
Wildcard masks are used in three main places in Cisco IOS: standard and extended access control lists (ACLs), OSPF network statements to define which interfaces participate in an OSPF area, and in some BGP neighbor filtering and route map configurations. In all of these contexts, the wildcard mask defines the range of IP addresses that a rule or statement applies to, functioning as a matching filter rather than a routing decision tool.
A /22 prefix corresponds to the subnet mask 255.255.252.0. To convert to a wildcard mask, subtract each octet from 255: 255−255=0, 255−255=0, 255−252=3, 255−0=255, giving you a wildcard mask of 0.0.3.255. This wildcard mask paired with a network address covers a range of 1,024 IP addresses. Use our subnet calculator to verify any conversion instantly.
The most common cause is using the subnet mask instead of the wildcard mask in the OSPF network command. For example, writing network 10.1.0.0 255.255.0.0 area 0 instead of network 10.1.0.0 0.0.255.255 area 0 means the interface IP may not be matched by the statement. Check your network statements with show ip ospf and verify the wildcard mask correctly encompasses the interface IP addresses you want included in the OSPF process.
Yes, a wildcard mask of 0.0.0.0 means every bit must match exactly, so only the single IP address specified is matched — equivalent to using the host keyword shorthand in Cisco IOS ACL syntax. For example, permit ip host 192.168.1.50 any is functionally identical to permit ip 192.168.1.50 0.0.0.0 any. Using the host keyword is preferred for readability and reduces the chance of mask entry errors.
host keyword shorthand for clarityFor authoritative networking standards and specifications, refer to the Internet Assigned Numbers Authority (IANA) or IETF RFC documents.
 |
 |
 |
 |
