Packet Size Calculator

Calculate the total frame size of network packets by adding protocol headers to your payload. See exact overhead percentages, MTU compliance, and per-layer breakdown — all calculated locally in your browser.

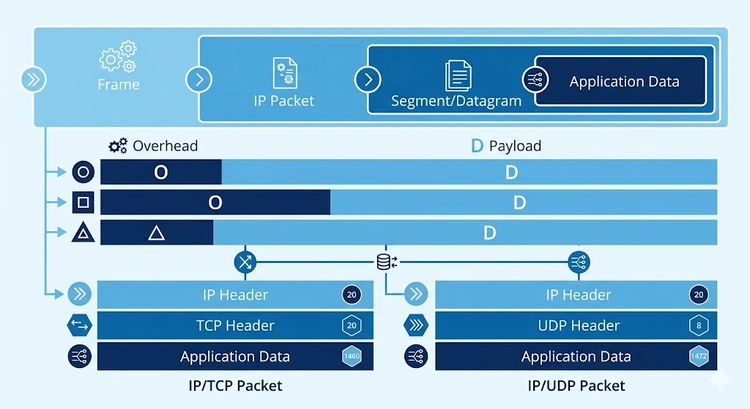

What Is a Network Packet?

A network packet is a formatted unit of data carried across a network. Every packet consists of a payload (your actual data) wrapped in multiple layers of headers that tell network devices how to route, deliver, and verify the data. Understanding packet structure is fundamental to network troubleshooting and performance optimization.

Each layer of the TCP/IP model adds its own header, creating overhead that reduces the bandwidth available for actual data. This calculator helps you visualize exactly how much overhead your packets carry. For understanding how this impacts throughput, see our Network Throughput Calculator.

Protocol Header Sizes Reference

Each network protocol adds a fixed (or semi-fixed) header to every packet. Here's a comprehensive reference of header sizes at each layer:

Pro Tip: When running a VPN or tunnel, the encapsulation headers reduce your effective MTU. For example, IPsec with ESP adds about 50 bytes of overhead, reducing a standard 1500-byte MTU to approximately 1400 bytes of usable payload. This is why VPN connections sometimes cause fragmentation and slow performance. Adjust your MTU accordingly and test with our Ping Test using the "don't fragment" flag.

Understanding MTU and Fragmentation

The Maximum Transmission Unit (MTU) is the largest IP datagram a network interface will transmit without fragmentation. The standard Ethernet MTU is 1500 bytes, which includes the IP header and everything above it but excludes the Ethernet header and FCS.

When a packet exceeds the MTU, it must be fragmented (split into smaller pieces) or dropped if the Don't Fragment (DF) bit is set. Fragmentation hurts performance because each fragment needs its own headers and reassembly adds latency. Use the Network Latency Test to detect if fragmentation is impacting your connection.

Packet Size and Network Performance

Packet size directly impacts network throughput, latency, and efficiency. Smaller packets have higher overhead percentages, while larger packets risk fragmentation:

• Small packets (64 bytes) — Common in VoIP, gaming, and ACK traffic. Very high overhead (~96% headers). Switches and routers are rated by packets-per-second (PPS), and small packets stress forwarding engines.
• Medium packets (512-1024 bytes) — Typical web browsing traffic. Moderate overhead. Good balance for interactive applications.
• Large packets (1400-1500 bytes) — File transfers, streaming. Low overhead (~3%). Maximum efficiency on standard Ethernet.
• Jumbo frames (9000 bytes) — Data center and storage traffic. Minimal overhead but requires end-to-end jumbo frame support.

For understanding how packet size impacts your effective bandwidth, use the Bandwidth Calculator alongside this tool. To measure actual vs theoretical throughput, check the Network Throughput Calculator.

Common Packet Sizes by Application

Different applications generate characteristic packet sizes. Knowing these helps with traffic analysis and QoS configuration:

How to Find Your Current MTU

Discovering the correct MTU for your path prevents fragmentation and optimizes performance:

Windows

ping -f -l 1472 8.8.8.8

Decrease the size (-l value) until pings succeed. Add 28 for IP+ICMP headers to get your path MTU.

macOS / Linux

ping -D -s 1472 8.8.8.8

The -D flag sets Don't Fragment. Reduce -s value until successful. Your path MTU = successful size + 28.

Router

Most routers display MTU settings in the WAN configuration. Log in at your router's IP and check the internet/WAN settings. For DSL connections with PPPoE, the MTU should be set to 1492. See our ISP throttling test to check if MTU issues are causing performance problems.

Tunnel Overhead and Effective MTU

When using VPNs, VXLAN, or other tunneling technologies, the encapsulation headers consume part of the MTU. This reduces the space available for your actual data:

• IPsec (transport mode): ~30-50 bytes overhead depending on cipher and auth
• IPsec (tunnel mode): ~50-70 bytes (adds outer IP header)
• WireGuard: ~60 bytes (simpler than IPsec but still significant)
• OpenVPN (UDP): ~28-70 bytes depending on cipher and options
• VXLAN: 50 bytes (outer Ethernet + IP + UDP + VXLAN header)
• GRE: 24 bytes (outer IP + GRE header)

For long-distance or high-latency links, this overhead compounds. Test your effective throughput with the Speed Test and compare to theoretical capacity from the Bandwidth Calculator. For wired connections, check maximum cable distances with the Cable Length Calculator.

Video: Understanding Network Packets

Related Tools and Guides

• Network Throughput Calculator
• Bandwidth Calculator
• Subnet Calculator
• IP to Binary Converter
• Ping Test
• Network Latency Test
• Cable Length Calculator
• Speed Test
• What Is My IP?
• What Is QoS?
• What Is a Subnet Mask?
• CIDR Converter

Frequently Asked Questions

What is the minimum Ethernet frame size?

The minimum Ethernet frame size is 64 bytes (excluding preamble and SFD). This includes 14 bytes for the Ethernet header, 46 bytes of payload (padded if necessary), and 4 bytes for the FCS. Frames smaller than 64 bytes are padded to meet this minimum. On the wire, with preamble and interframe gap, the minimum is 84 bytes.

What is the maximum Ethernet frame size?

The maximum standard Ethernet frame is 1518 bytes (14-byte header + 1500-byte payload + 4-byte FCS). With 802.1Q VLAN tagging, it increases to 1522 bytes. Jumbo frames extend this to 9022 bytes but require support from all devices in the path.

Why does my VPN reduce throughput by more than the header overhead suggests?

VPN overhead includes not just the extra headers but also encryption/decryption CPU time, potential fragmentation and reassembly, and increased packet processing. Each encrypted packet requires crypto operations that consume CPU cycles. This is especially noticeable on routers with limited processing power.

What is MSS clamping and when should I use it?

MSS clamping adjusts the Maximum Segment Size in TCP SYN packets to prevent fragmentation over tunnels. Use it when you have a reduced MTU (VPN, PPPoE, VXLAN) and see TCP performance issues. Most routers can clamp MSS automatically — look for the setting near your MTU configuration.

How does packet size affect VoIP quality?

VoIP packets are intentionally small (typically 160-320 bytes payload) to minimize latency. Each packet carries 10-30ms of audio. Larger packets would add more delay. The tradeoff is higher overhead — a VoIP stream at 50 packets/second consumes more bandwidth per audio-second than bulk data. Configure QoS to prioritize these small, time-sensitive packets.

What happens when a packet exceeds the MTU?

If the Don't Fragment (DF) bit is not set, the router fragments the packet into smaller pieces that fit the MTU. Each fragment gets its own IP header, increasing overhead. If DF is set, the router drops the packet and sends an ICMP "Fragmentation Needed" message back. Modern TCP uses Path MTU Discovery (PMTUD) with DF set to find the optimal packet size automatically.

Should I enable jumbo frames on my home network?

Generally no. Jumbo frames (9000 bytes) require every device in the path to support them — switches, NICs, and endpoints. If any device doesn't support jumbo frames, you'll get fragmentation or dropped packets. Jumbo frames are primarily beneficial in data centers for storage traffic (iSCSI, NFS) and high-throughput server-to-server communication.
