Running a network cable through walls, across floors, or between buildings? Before you pull that cable, check whether your planned run is within the specification for your chosen cable type. Exceeding the maximum cable length causes packet loss, reduced speeds, and intermittent connectivity — problems that are frustrating to diagnose after the cable is already installed. This free Ethernet cable length calculator tells you instantly whether your run is within spec, what speeds are supported, and what to do if your run is too long. For related calculations, also check the subnet calculator or the bandwidth calculator.
Ethernet cable length limits exist because of a fundamental physical property of electrical signals: they degrade as they travel through copper wire. This degradation takes two main forms — attenuation (loss of signal strength) and crosstalk (interference between wire pairs within the same cable). Both increase with cable length. Beyond a certain point, the receiving device can no longer reliably distinguish the signal from background noise, causing errors, retransmissions, and ultimately connection failure.
The 100-meter maximum for copper Ethernet standards isn't arbitrary. It was chosen based on the worst-case signal-to-noise ratio that allows reliable 1 Gbps transmission using standard hardware. At 100 meters, the signal has attenuated to roughly the minimum level that a standard gigabit receiver can work with. Push beyond that and you're rolling the dice — the connection may work intermittently, or not at all, depending on cable quality, connector quality, temperature, and other variables.
This is especially relevant when pulling cable through conduit in a building. Always measure the actual cable path, not the straight-line distance. Cable routing through walls, up through floors, and along cable trays often adds 20–40% to the apparent distance. A room 60 meters away in a straight line may require 85–90 meters of cable when routed properly. Getting this wrong means cutting open walls later.
For reference on how IP addresses relate to physical network segments, see our guide on what a gateway is and how segments connect to each other. Understanding the physical layer helps make sense of why DHCP and routing work the way they do.
Each generation of Ethernet cable standard offers higher bandwidth (measured in MHz) and supports faster data rates. Here is a comprehensive comparison of all major copper and fiber categories:
| Category | Max Speed | Bandwidth | Max Length | Connector | Best For |
|---|---|---|---|---|---|
| Cat5e | 1 Gbps | 100 MHz | 100m / 328ft | RJ-45 | Home networks, basic office |
| Cat6 | 10 Gbps (up to 55m), 1 Gbps (100m) | 250 MHz | 100m / 328ft | RJ-45 | Most new installations |
| Cat6a | 10 Gbps (full 100m) | 500 MHz | 100m / 328ft | RJ-45 | Long 10GbE runs, enterprise |
| Cat7 | 10 Gbps | 600 MHz | 100m / 328ft | GG45 / RJ-45 | Data centers (limited adoption) |
| Cat8 | 25–40 Gbps | 2000 MHz | 30m / 98ft | RJ-45 | Server-to-switch, ToR cabling |
| OM3 Fiber | 10 Gbps (300m), 40 Gbps (100m) | N/A | 300m / 984ft | LC / SC | Building backbone |
| OM4 Fiber | 10 Gbps (550m), 100 Gbps (100m) | N/A | 550m / 1804ft | LC / SC | Campus backbone |
| OS2 Fiber | 100 Gbps+ | N/A | 10km+ | LC / SC | WAN, inter-building, ISP |
Notice that Cat6 and Cat6a look similar on paper but differ critically: Cat6 can only run 10 Gbps for up to 55 meters, while Cat6a maintains full 10 Gbps performance for the entire 100-meter segment. If you're wiring a building for 10GbE and your runs exceed 55 meters, Cat6a is mandatory, not optional. The "a" stands for "augmented" — it adds alien crosstalk (AXT) specifications that Cat6 lacks.
Also check the subnet calculator when planning network segments, as physical cable segments often map directly to logical subnets. A well-planned physical topology makes logical network design much simpler.

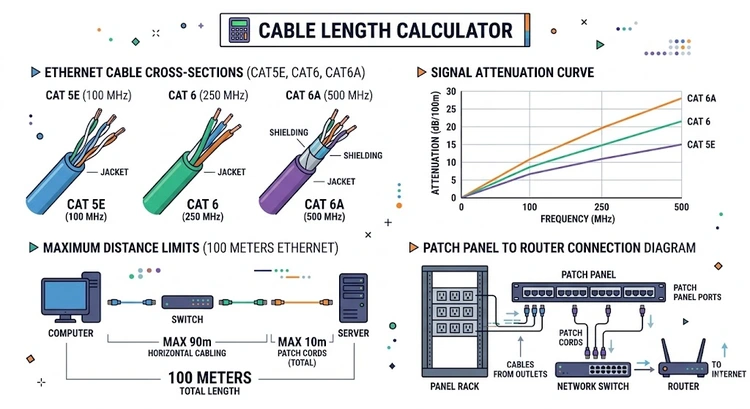

The 100-meter maximum run length for copper Ethernet is defined in the IEEE 802.3 standard and the TIA/EIA-568 cabling standard (see the TIA cabling standards page for the official documentation). The 100 meters is actually broken down into specific channel components:
This means if you run 95 meters of cable in the wall, you only have 5 meters of patch cord budget remaining — split between both ends. Many installers forget to account for patch cables and then wonder why a 95-meter run fails intermittently. Always measure your permanent link and subtract from 100 to find your patch cord budget.
The 100-meter limit also assumes the cable is within operating temperature. At elevated temperatures (above 40°C / 104°F), signal attenuation increases. Cables run through hot attics or alongside HVAC equipment may effectively have a shorter usable length. In those environments, de-rate your maximum run by 5–10 meters.
The TIA-568 standard also specifies connector quality requirements. A poor-quality RJ-45 crimp introduces additional insertion loss. Four bad connectors can collectively reduce your effective cable length budget by the equivalent of several meters. Use quality connectors and verify your terminations with a cable tester.
Important: The 100-meter rule applies to the entire channel from switch port to device NIC — including all patch cables, keystones, and connectors. A 90-meter wall run with 5+5 meter patch cables is exactly at the limit. Add a keystone coupler in the middle and you've introduced additional loss that may push you over.
The failure mode for an oversized Ethernet run is rarely clean. You don't usually get "cable too long, connection refused." Instead, you get one or more of these symptoms:
| Symptom | Cause | Typical Threshold |
|---|---|---|
| Link negotiates at lower speed (100 Mbps instead of 1 Gbps) | Signal too degraded for gigabit modulation | Typically 105–115m depending on cable quality |
| High packet error rate, frequent retransmissions | Bit errors from marginal signal-to-noise ratio | Often starts at 95–100m |
| Intermittent connectivity — link drops and recovers | Signal at the edge of reliability, temperature-sensitive | Near the limit (98–105m) |
| No link at all | Signal completely lost | Typically beyond 120–130m |
| PoE device doesn't power on | Voltage drop over long cable causes power delivery failure | Often occurs before data fails |
Power over Ethernet (PoE) devices are particularly sensitive to cable length. Voltage drops over resistance, and resistance increases with cable length. A PoE IP camera or wireless access point at the end of a 95-meter run may not receive enough voltage to operate properly, even if the data link is fine. Cat6a's lower resistance and better conductors make it preferable for long PoE runs.
If you need to span more than 100 meters, your options are: add a network switch as a repeater at the midpoint, use a media converter to switch to fiber, or run fiber for the entire segment. For inter-building runs, always use fiber regardless of distance — copper is vulnerable to ground loops and lightning-induced surges between buildings.
Ethernet cable comes in two shielding variants: UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair). The shielding reduces electromagnetic interference (EMI) from external sources and reduces crosstalk. Here's how to decide which to use:
| Property | UTP | STP / FTP / SFTP |
|---|---|---|
| Cost | Lower | Higher (20–50% more) |
| EMI immunity | Moderate (relies on twisting) | High (foil/braid adds shielding) |
| Installation complexity | Simple | Requires proper grounding at both ends |
| Grounding requirement | None | Must be grounded — improper grounding makes it worse than UTP |
| Best environment | Offices, homes, clean environments | Industrial, near motors/HVAC/fluorescent lighting |
| Cat6a standard | U/UTP or F/UTP available | F/FTP, S/FTP available |
In most home and office environments, UTP cable is the correct choice. STP is primarily needed in industrial environments near large electric motors, fluorescent lighting ballasts, or other high-EMI equipment. Critically, STP cable must be properly grounded at both ends — if it isn't, the shield acts as an antenna and actually increases noise. Many installers have made EMI problems worse by using STP without proper grounding.
For a home network, standard Cat6 UTP is the recommended choice for new runs. If your home uses port forwarding for servers or has professional demands, Cat6a UTP is worth the modest price premium for future-proofing to 10GbE.
Fiber optic cable eliminates the distance limitation of copper entirely — OM3 multimode fiber supports 10 Gbps for 300 meters; single-mode OS2 fiber can carry 100 Gbps for 10 kilometers or more. Fiber is also completely immune to EMI and doesn't create ground loops between buildings.
Use fiber when: your run exceeds 100 meters; you need to connect buildings (always use fiber between buildings to avoid ground loops); you're running cable near high-voltage equipment or motors; or you need future-proof bandwidth for backbone links. A 12-strand OM4 fiber backbone between floors of a building is far more future-proof than copper at similar cost.
The main downside of fiber is termination cost and complexity. Pre-terminated fiber assemblies in standard lengths have become affordable, but custom-length terminations require specialized equipment and skill. For runs between 100–300 meters, pre-terminated OM3/OM4 assemblies are often the most practical solution.
When planning your network topology, the gateway and switch locations often determine where fiber vs. copper runs make sense. NAT and routing operate above the physical layer, but physical topology decisions affect performance at every layer above it.
Pro Tip: When roughing in cable for new construction or renovation, always install Cat6a even if you only need Cat5e speeds today. The incremental material cost is small (Cat6a bulk cable costs about 30–50% more than Cat5e), but the labor cost to re-pull cable is enormous. Cat6a supports 10 Gbps for the full 100-meter segment length and is well-suited for PoE++ devices. Future-proofing with Cat6a during initial installation is almost always the right economic decision.
Key Takeaways
For copper Ethernet (Cat5e, Cat6, Cat6a, Cat7), the maximum channel length is 100 meters (328 feet). This includes the permanent wall run plus all patch cables at both ends. The standard breakdown is 90 meters for the in-wall run and 5 meters of patch cable at each end. For fiber optic cable, maximum lengths are much greater: OM3 supports up to 300 meters at 10 Gbps, and OS2 single-mode fiber can reach 10 kilometers or more.
No — 150 meters significantly exceeds the 100-meter maximum for Cat5e (and all copper Ethernet standards). At that length you will experience high packet error rates, link speed downgrade, or no link at all. To span 150 meters, you need to either add a network switch as a midpoint repeater, convert to fiber for the long run, or use a media converter. Fiber OM3 easily handles 150 meters at 10 Gbps with plenty of margin to spare.
Yes, significantly. Cables that meet the specification (verified by a certified cable tester) reliably deliver rated performance. Cheap cables may not meet spec even when new — they may use thinner conductors (24 AWG or lower instead of the standard 23 AWG), lower-quality insulation, or incorrect twist rates. These factors reduce the effective maximum length and supported data rate. For critical runs, use cable from reputable brands and test with a proper cable certifier after installation.
A crossover cable has its transmit and receive pairs swapped between the two ends, allowing you to connect two devices of the same type directly (like two computers or two switches) without a hub or switch in between. Modern Gigabit Ethernet ports support Auto-MDIX, which automatically detects and corrects the crossover — making crossover cables largely unnecessary today. Auto-MDIX is mandatory in the 1000BASE-T (Gigabit Ethernet) standard, so any modern gigabit device works with straight-through cables for direct connections.
Technically yes, but the entire channel will perform at the lowest-rated cable segment. If you have 80 meters of Cat6 and 20 meters of Cat5e patch cable, the full run is limited to Cat5e specifications (1 Gbps, 100 MHz). The link will work but you won't get Cat6's 10 Gbps capability. For 10GbE runs, every component in the channel — cable, connectors, keystones, and patch panels — must be rated Cat6 or higher.
Use shielded cable (STP/FTP/SFTP) when running near strong electromagnetic interference sources: industrial motors, large HVAC systems, fluorescent lighting ballasts, MRI machines, or high-voltage power runs. In normal home and office environments, UTP (unshielded) is preferred because it's simpler to install and doesn't require grounding. Always ground STP cable at both ends when you do use it — an ungrounded shield is worse than no shield.
Plenum-rated cable (CMP rating) is required by building codes in the US for installation in plenum spaces — the air circulation spaces above drop ceilings or below raised floors used for HVAC air return. Plenum cable uses a special low-smoke, flame-retardant jacket that doesn't emit toxic fumes when burned. Standard PVC-jacketed cable (CMR or CM) is not permitted in plenum spaces. Riser-rated cable (CMR) is for vertical runs between floors. Always check local building codes before purchasing cable for commercial installations.
Both Cat7 and Cat6a support 10 Gbps over 100 meters, but Cat7 uses non-standard GG45 or TERA connectors rather than standard RJ-45, severely limiting compatibility with standard switches and patch panels. Cat7 is also more expensive and stiffer. For this reason, Cat6a has become the industry standard for 10GbE copper runs, while Cat7 sees limited real-world deployment. Cat8, which does use RJ-45 connectors, is the preferred upgrade path beyond Cat6a — though its 30-meter limit restricts it to short data center runs.
 |
 |
 |
 |
