OSI Model Explained: The 7 Layers in Plain English

The OSI model is the universal blueprint that explains how every piece of data travels from one device to another across a network — and once you understand its seven layers, troubleshooting Wi-Fi problems and configuring routers will never feel like a mystery again. Whether you're setting up a home network or trying to figure out why your connection keeps dropping, the OSI model gives you a mental map of exactly where things go wrong. Think of it as the anatomy of the internet, explained in plain English.

In this guide you'll learn what each of the seven OSI layers actually does, how they relate to the gear in your home (your router, switch, and devices), and how this knowledge helps you diagnose slow speeds or broken connections. Understanding the OSI model pairs perfectly with knowing what an IP address is and how DHCP assigns addresses automatically — two concepts that live squarely in the middle layers of the model.

What Is the OSI Model & Why Does It Exist?

OSI stands for Open Systems Interconnection. It's a conceptual framework published by the International Organization for Standardization (ISO) in 1984 to give engineers a common language for describing how networks work. Before the OSI model, different manufacturers built networking equipment that only talked to itself — a nightmare for interoperability. The model solved that by dividing network communication into seven distinct, well-defined layers, each with a specific job.

The genius of the model is that each layer only talks to the layers immediately above and below it. Layer 3 doesn't need to know anything about Layer 1's physical cables; it just hands data down and receives data up. This separation of concerns is why you can swap out a Cat 5e cable for Wi-Fi (a Layer 1 change) without reinstalling your web browser (a Layer 7 application). Each layer is essentially a black box that does its job and passes the result along.

It's worth knowing that the OSI model is a reference model, not a strict implementation. The internet actually runs on the TCP/IP model, which collapses the OSI layers into four groups. But networking engineers everywhere — from Cisco-certified professionals to helpdesk technicians — still use OSI terminology daily because it offers the finest-grained vocabulary for pinpointing problems. When a tech says "that's a Layer 2 issue," they mean the problem is with MAC addressing or switching, not with your cables or your web apps.

A common memory trick for the seven layers (from top to bottom) is: All People Seem To Need Data Processing — Application, Presentation, Session, Transport, Network, Data Link, Physical. From bottom to top, reverse it: Please Do Not Throw Sausage Pizza Away. Whichever direction you learn it, the order matters because data flows down through the layers on the sending device and back up through the layers on the receiving device.

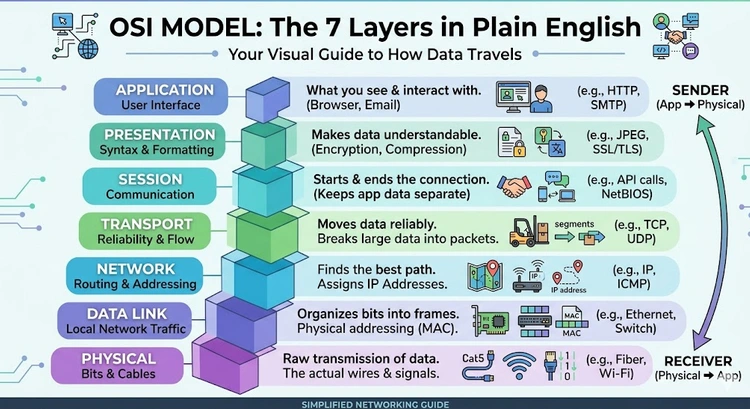

The 7 OSI Layers Explained, One by One

Here's a walk through each layer, starting at the bottom where electrons meet wire, and ending at the top where you click a link in your browser.

1. Layer 1 — Physical — This is the raw electrical or optical signal traveling over a medium: copper cables, fiber optic strands, or radio waves from your Wi-Fi router. Layer 1 defines voltages, pin layouts, cable specifications (Cat 6, fiber), and wireless frequencies. If your Ethernet cable is unplugged or your router's radio is dead, you have a Layer 1 problem — nothing else matters until this layer is working.
2. Layer 2 — Data Link — This layer takes the raw bits from Layer 1 and packages them into frames, adding source and destination MAC addresses. Your home network switch operates here — it reads MAC addresses to decide which port to send a frame out of. Wi-Fi security protocols like WPA3 also live at this layer, which is why enabling WPA3 is a Data Link–level upgrade.
3. Layer 3 — Network — Layer 3 is where IP addresses and routing live. Your router is the classic Layer 3 device: it reads destination IP addresses and decides the best path to forward a packet toward its destination, potentially across multiple networks. Every time you load a webpage, your router is making Layer 3 forwarding decisions dozens of times per second. Subnetting — dividing IP space into smaller blocks — is purely a Layer 3 concern; our subnet calculator can help you work out those ranges.
4. Layer 4 — Transport — This layer manages end-to-end communication reliability between two devices. TCP (Transmission Control Protocol) lives here — it breaks data into segments, numbers them, and ensures every segment arrives and is reassembled in order. UDP also lives here; it skips the error-checking overhead, which is why video streaming and online games prefer it (a dropped frame is better than a frozen one). Port numbers — like port 443 for HTTPS — are a Layer 4 concept, which is why port forwarding on your router is technically a Layer 3/4 operation.
5. Layer 5 — Session — The Session layer opens, manages, and closes communication sessions between two devices. Think of a session as a phone call: Layer 5 is responsible for dialing, keeping the line open, and hanging up. When you log into your bank's website, a session is established; if your connection drops mid-transaction and automatically reconnects, Layer 5 mechanisms are involved in restoring that session.
6. Layer 6 — Presentation — This layer is the translator. It handles data formatting, encryption, and compression so that the application layer can work with a consistent format regardless of how data was encoded at the source. SSL/TLS encryption — the padlock in your browser's address bar — is a Layer 6 function. So is JPEG image compression and character encoding (UTF-8). This layer ensures that a file sent from a Mac can be read by a Windows machine without corruption.
7. Layer 7 — Application — The top layer is the one users actually interact with. HTTP/HTTPS (web browsing), DNS (domain name lookups), SMTP (email), FTP (file transfer), and DHCP (automatic IP assignment) all live here. Your web browser, email client, and streaming app are all Layer 7 applications. When you type a URL and press Enter, the cascade begins at Layer 7 and travels all the way down to Layer 1 before crossing the network and climbing back up on the other end.

OSI Layer Quick-Reference: Protocols, Devices & Data Units

This table maps each layer to its real-world protocols, the hardware associated with it, and the name for the unit of data at that layer — a detail that comes up constantly in networking certifications and troubleshooting.

Layer	Name	Key Protocols & Technologies	Data Unit
7	Application	HTTP, HTTPS, DNS, DHCP, SMTP, FTP	Data / Message
6	Presentation	TLS/SSL, JPEG, MPEG, ASCII, UTF-8	Data
5	Session	NetBIOS, RPC, PPTP, SIP	Data
4	Transport	TCP, UDP, SCTP	Segment (TCP) / Datagram (UDP)
3	Network	IP (IPv4/IPv6), ICMP, OSPF, BGP	Packet
2	Data Link	Ethernet, Wi-Fi (802.11), ARP, WPA3	Frame
1	Physical	Cat 6, Fiber, DSL, Bluetooth, coax	Bit

Using the OSI Model to Troubleshoot Network Problems

The real payoff of learning the OSI model is being able to work through network problems methodically instead of randomly rebooting things and hoping for the best. Professionals always troubleshoot from Layer 1 up (or sometimes Layer 7 down) to isolate exactly which layer is broken. This approach prevents you from spending an hour reconfiguring DNS settings when the real problem is a loose cable.

Start with the physical layer every time. Is the cable plugged in? Are the router's lights normal? Can other devices connect? If the problem only affects one device, you've already narrowed it to that device's stack. If it affects all devices, the problem is somewhere in your shared infrastructure. From there, move up: can you get a Layer 3 IP address (check with ipconfig or ifconfig)? Can you ping your router's gateway? Can you resolve a domain name with a DNS lookup? Each test confirms one more layer is healthy.

Understanding layers also clarifies why certain fixes work. Rebooting your router clears its Layer 3 routing table and Layer 2 ARP cache — that's why the classic "turn it off and on again" actually solves a surprisingly large number of problems. Slow Wi-Fi is often a Layer 1 (signal interference) or Layer 2 (channel congestion) issue, while a website that loads on mobile data but not Wi-Fi points to a Layer 3 or Layer 7 problem like a bad DNS setting or firewall rule on the router.

• Start troubleshooting at Layer 1: verify cables, power, and signal strength before touching any settings
• Use ping to confirm Layer 3 connectivity — ping the router, then ping 8.8.8.8, then ping google.com
• If you can ping an IP but not a domain name, the fault is at Layer 7 (DNS) — not your connection itself
• Check if the problem is wired vs. wireless to quickly separate Layer 1/2 issues from Layer 3+ issues

Pro Tip: Run a ping test to both your router's IP and an external IP like 8.8.8.8. If the router responds but 8.8.8.8 doesn't, your ISP connection is the culprit (Layer 1–3 between your router and the ISP). If both respond but websites don't load, you have a DNS issue at Layer 7 — try switching to a faster DNS server.

Frequently Asked Questions

What does the OSI model actually stand for?

OSI stands for Open Systems Interconnection, a standard developed by the International Organization for Standardization (ISO) in 1984. It was created to give all networking vendors a shared framework so that equipment from different manufacturers could communicate on the same network. Today it's used primarily as a teaching and troubleshooting reference rather than a strict implementation spec.

Does my home router use the OSI model?

Yes — your router operates across multiple OSI layers simultaneously. Its physical ports and radio antennas work at Layer 1, its switching and Wi-Fi functions work at Layer 2, and its routing and NAT (Network Address Translation) functions work at Layer 3. When you configure settings like static IP addresses or port forwarding, you're directly interacting with Layer 3 behavior.

What is the difference between TCP and UDP in OSI terms?

Both TCP and UDP are Layer 4 (Transport layer) protocols, but they make different trade-offs. TCP guarantees delivery by numbering packets and requiring acknowledgement — ideal for web browsing and file downloads where accuracy matters. UDP skips that overhead for speed — ideal for video calls and gaming where a slightly dropped packet is better than a lag spike from retransmission.

Where does DNS fit in the OSI model?

DNS (Domain Name System) is a Layer 7 (Application layer) protocol. It translates human-readable domain names like example.com into IP addresses that Layer 3 can route. When DNS breaks, you often can still ping IP addresses directly but can't load any websites by name — a classic symptom you can test with our DNS lookup tool.

Is Wi-Fi security (WPA3) a Layer 2 or Layer 7 feature?

Wi-Fi security protocols like WPA2 and WPA3 operate at Layer 2 (Data Link). They encrypt frames traveling over the wireless medium before they even reach Layer 3. This means WPA3 protects all traffic on your wireless network regardless of whether the application itself encrypts data — it's a foundational protection layer beneath everything else you do online.

Why do networking certifications focus so much on the OSI model?

The OSI model gives network engineers a universal vocabulary to describe problems and solutions across any hardware or protocol. Certifications like CompTIA Network+ and Cisco's CCNA build their entire curriculum around OSI because it creates a mental framework for thinking about any network problem systematically. Once you internalize the layers, you can quickly reason about unfamiliar technologies by asking "which layer does this operate at?" and working from there.
