Home Network Diagram Generator

Create professional ASCII network topology diagrams for your home or small office network. Add routers, switches, access points, and endpoints — then generate a clean text-based diagram you can paste into documentation, tickets, or config files.

What Is a Home Network Diagram?

A home network diagram is a visual map showing every device on your network and how they connect. Whether you're setting up a new router at 192.168.1.1, planning a mesh WiFi deployment, or troubleshooting connectivity problems, a clear topology diagram saves hours of guesswork.

Network diagrams are used by IT professionals and home enthusiasts alike. They help you understand traffic flow, identify bottlenecks, and document your setup for future reference. This tool generates clean ASCII diagrams that work everywhere — from email to code comments to change logs.

Common Home Network Topologies

Most home networks follow one of these standard layouts. Understanding your topology helps with subnet planning and access point placement:

Devices in a Typical Home Network

Before generating your diagram, identify every device that connects to your network. Use our Network Device Inventory tool to catalog them. Common devices include:

Pro Tip: Always assign static IP addresses to infrastructure devices (routers, switches, APs, servers, cameras). Use your router's DHCP reservation feature to keep things organized. This makes your diagram accurate long-term and simplifies DNS lookups and firewall rules.

How to Plan Your Network Layout

A well-planned network starts with understanding your physical space and requirements:

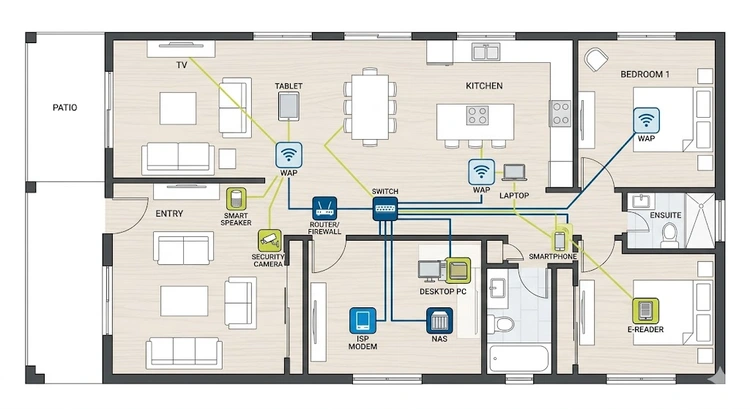

1. Map your physical layout — Sketch your home's floor plan and identify where the modem enters.
2. Identify device locations — Mark where PCs, smart TVs, and other wired devices will sit.
3. Plan Ethernet runs — Wired connections are always faster and more reliable than WiFi. Run cables where possible.
4. Position access points — Use our Access Point Calculator to determine how many APs you need.
5. Segment your network — Separate IoT devices onto their own VLAN for security. See our IoT network isolation guide.
6. Document everything — Generate a diagram with this tool and save it with your network notes.

Network Segmentation Best Practices

Modern home networks benefit from segmentation, especially with the rise of IoT. If you're running smart home devices, security cameras, or a home lab, consider separating traffic with VLANs:

For a detailed walkthrough on VLAN setup, check our IoT VLAN Segmentation Guide and smart home network security guide.

Exporting and Using Your Diagram

Once you generate your diagram, click Copy to Clipboard to paste it anywhere. Common uses include:

• IT documentation — Paste into your network wiki or change management records.
• Troubleshooting — Share your layout when asking for help on forums or with ISP support. Our Network Troubleshooting Wizard can also help diagnose issues.
• Planning upgrades — Visualize where new devices or access points fit before purchasing.
• Security audits — Document your network for audit checklists and compliance reviews.

Video: Home Network Setup Guide

Related Tools

• Access Point Calculator
• Network Device Inventory
• Subnet Calculator
• Smart Home Subnet Planner
• IoT VLAN Segmentation Guide
• Network Troubleshooting Wizard
• Bandwidth Calculator
• What Is My IP?

Frequently Asked Questions

Why do I need a network diagram for my home?

A network diagram helps you understand how all devices connect, making troubleshooting faster and upgrades easier. It's especially valuable when you have more than ten devices or use advanced features like VLANs, port forwarding, or VPN on your router.

What is the best topology for a home network?

Most homes use a star topology with a single router at the center. For larger homes, a star-bus topology with a switch and multiple access points provides better coverage. Mesh WiFi systems simplify multi-AP deployments.

How do I find all devices on my network?

Log into your router at 192.168.1.1 and check the DHCP client list. You can also run arp -a from a terminal. Our IP Conflict Detector explains additional scanning methods.

Should I use static IPs or DHCP?

Use static IPs (or DHCP reservations) for infrastructure devices like routers, switches, servers, and cameras. Let DHCP handle phones, laptops, and guest devices. This keeps your diagram accurate without manual management of every device.

How often should I update my network diagram?

Update your diagram whenever you add or remove devices, change IP addresses, or modify your network topology. At minimum, review it quarterly. Use our Network Changelog Generator to track changes over time.

Can I use this diagram for a small office network?

Yes, this tool works for home and small office networks with up to about 50 devices. For larger deployments, you may want to combine it with our Network Diagram ASCII Generator which supports more complex topologies.

What cable types should I use for my network?

Use Cat 6 or Cat 6a Ethernet cables for all wired connections. They support speeds up to 10 Gbps over short distances. Check our Cable Color Code Reference for wiring standards.

About Tommy N.

Tommy is the founder of RouterHax and a network engineer with 10+ years of experience in home and enterprise networking. He specializes in router configuration, WiFi optimization, and network security. When not writing guides, he's testing the latest mesh WiFi systems and helping readers troubleshoot their home networks.
