SMTP Test Tool

Learn the SMTP handshake process with this interactive command simulator. Walk through the complete HELO → MAIL FROM → RCPT TO → DATA → QUIT sequence, see real server responses, and reference every SMTP status code. This educational tool helps you understand how email delivery works at the protocol level.

SMTP Command Simulator

Try: HELO mail.example.com, MAIL FROM:<user@example.com>, RCPT TO:<dest@example.com>, DATA, QUIT

What Is SMTP?

SMTP (Simple Mail Transfer Protocol) is the standard protocol for sending email across the internet, defined in RFC 5321. When you click "Send" in your email client, your device connects to an SMTP server on port 25 (server-to-server) or port 587 (client-to-server submission) and exchanges a series of text commands to deliver the message.

SMTP works alongside other protocols: DNS resolves MX records to find the recipient's mail server, while protocols like IMAP and POP3 handle retrieving messages. If you've ever used our Port Checker to test mail server connectivity, you've already seen SMTP ports in action.

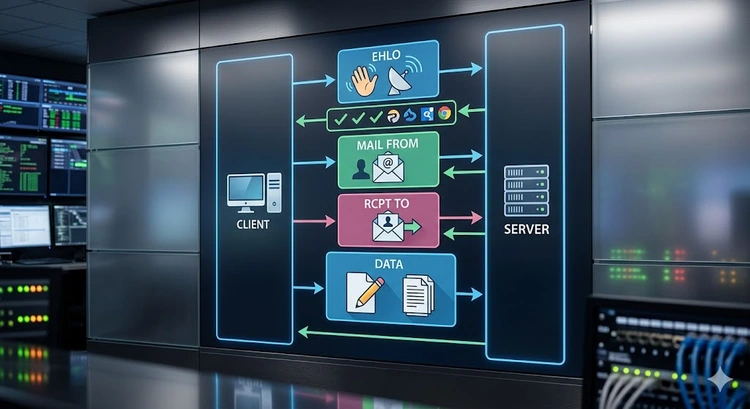

The SMTP Handshake Sequence

Every SMTP email delivery follows this exact sequence of commands and responses:

Step	Client Command	Server Response	Purpose
1	(connect)	220 server ready	TCP connection established
2	EHLO hostname	250 + capabilities	Identify client, list features
3	STARTTLS	220 ready for TLS	Upgrade to encrypted connection
4	AUTH LOGIN	235 authenticated	Authenticate sender (submission only)
5	MAIL FROM:<sender>	250 Ok	Specify envelope sender
6	RCPT TO:<recipient>	250 Ok	Specify recipient(s)
7	DATA	354 send data	Begin message body
8	message + "."	250 queued	Deliver message content
9	QUIT	221 Bye	Close connection

Pro Tip: Use EHLO instead of HELO in modern implementations. EHLO (Extended HELO) returns the server's supported extensions like STARTTLS, AUTH mechanisms, and maximum message size. If you need to test SMTP connectivity to a real server, first verify the port is open using our Port Checker on port 25 or 587.

SMTP Status Codes Reference

SMTP responses always begin with a three-digit code. The first digit indicates the general category:

Code	Meaning	Common Cause	Action
220	Service ready	Server greeting on connect	Proceed with EHLO
221	Closing connection	Response to QUIT	Normal termination
235	Authentication successful	Valid credentials provided	Proceed with MAIL FROM
250	Action completed	Command accepted successfully	Continue next command
354	Start mail input	Response to DATA command	Send message body
421	Service unavailable	Server overloaded/shutting down	Retry later
450	Mailbox unavailable	Greylisting, temporary block	Retry in 5-15 minutes
451	Local error	Server processing failure	Retry later
452	Insufficient storage	Recipient mailbox full	Contact recipient
500	Syntax error	Unrecognized command	Check command format
501	Parameter error	Invalid email address format	Fix the address
503	Bad sequence	Commands in wrong order	Follow proper sequence
530	Auth required	Server requires authentication	Send AUTH command first
535	Auth failed	Invalid username/password	Check credentials
550	Mailbox not found	Recipient doesn't exist	Verify address
551	User not local	Recipient on different server	Try forwarding address
552	Storage exceeded	Message too large	Reduce attachment size
553	Mailbox name invalid	Malformed email address	Correct the address
554	Transaction failed	Blacklisted, policy violation	Check sender reputation

SMTP Ports and Security

SMTP uses different ports depending on the type of connection. Understanding which port to use is critical for proper email configuration:

Port	Protocol	Encryption	Use Case
25	SMTP	STARTTLS (optional)	Server-to-server delivery (MTA relay)
465	SMTPS	Implicit TLS	Client submission (legacy, re-standardized)
587	Submission	STARTTLS (required)	Client submission (recommended)
2525	SMTP (alt)	STARTTLS	Alternative when 25/587 blocked by ISP

Many ISPs block outbound port 25 to prevent spam from compromised home computers. If you're running a mail server behind your router, you'll need to configure port forwarding and ensure your ISP allows SMTP traffic. Test port availability with our Port Checker.

Note: Always use encrypted connections (STARTTLS on port 587 or implicit TLS on port 465) for client email submission. Sending credentials over unencrypted port 25 exposes your username and password to anyone monitoring the network. Check your DNS records to verify MX configuration and ensure your mail server uses proper TLS certificates — you can verify this with our SSL Certificate Checker.

Testing SMTP from the Command Line

You can test SMTP connectivity directly from your terminal. This is useful when troubleshooting email delivery issues on your network:

Using Telnet

telnet smtp.example.com 25
EHLO myhost.example.com
MAIL FROM:<test@example.com>
RCPT TO:<user@example.com>
DATA
Subject: Test Message
This is a test.
.
QUIT

Using OpenSSL (for TLS)

openssl s_client -starttls smtp -connect smtp.example.com:587

Before testing, make sure the target port is accessible. Use our Port Checker or a Ping Test to verify basic connectivity to the mail server. You may also want to check the server's MX record to confirm you're connecting to the right host.

Common SMTP Errors and Fixes

When email delivery fails, the SMTP error code tells you exactly what went wrong. Here are the most common issues network administrators encounter:

550 5.1.1 Recipient rejected — The email address doesn't exist. Verify the address and check for typos.
554 5.7.1 Rejected by policy — Your sending IP is blacklisted or fails authentication. Check your IP with an IP Blacklist Checker.
450 4.7.1 Greylisted — The server is temporarily rejecting your message. Retry in 5-15 minutes; legitimate mail servers will retry automatically.
421 Connection timed out — The server is overloaded or your connection dropped. Check your bandwidth and network latency.
530 Authentication required — The server requires login before sending. Ensure your email client is configured with valid SMTP credentials.

Key Takeaways

SMTP uses a simple text-based command/response protocol for sending email.
The standard sequence is EHLO → MAIL FROM → RCPT TO → DATA → QUIT.
Use port 587 with STARTTLS for client email submission — never send credentials over port 25.
SMTP response codes starting with 2xx indicate success, 4xx are temporary failures (retry), and 5xx are permanent errors.
Test mail server connectivity with our Port Checker on ports 25, 465, and 587.
Always configure SPF, DKIM, and DMARC to improve deliverability and prevent spoofing.

Video: SMTP Protocol Explained

Related Tools and Guides

Frequently Asked Questions

What is SMTP and how does it work?

SMTP (Simple Mail Transfer Protocol) is the internet standard for sending email. It works through a series of text commands exchanged between a client and server over a TCP connection. The client identifies itself, specifies the sender and recipient, transmits the message data, and closes the connection. Each command receives a numeric response code indicating success or failure.

What port should I use for SMTP?

Use port 587 with STARTTLS encryption for sending email from an email client (this is the recommended submission port). Port 465 with implicit TLS is also acceptable. Port 25 is used for server-to-server delivery and is often blocked by ISPs for residential connections to prevent spam.

What does SMTP error 550 mean?

SMTP error 550 means the recipient mailbox was not found or the server permanently rejected the message. Common causes include a non-existent email address, a full mailbox, or the sending IP being blacklisted. Check the full error message for the specific enhanced status code (like 5.1.1 for user not found).

How do I test if an SMTP server is working?

You can test SMTP connectivity using telnet (telnet server 25) or OpenSSL for encrypted connections. Start by checking if the port is open using a port checker, then attempt the full SMTP handshake sequence: connect, EHLO, MAIL FROM, RCPT TO, and QUIT.

What is the difference between SMTP and IMAP?

SMTP is used exclusively for sending email — it handles the delivery of messages from sender to recipient server. IMAP (Internet Message Access Protocol) is used for receiving and managing email — it lets your email client read, organize, and synchronize messages stored on the server. You need both protocols for a complete email experience.

Why is my SMTP connection being refused?

SMTP connection refusals are commonly caused by: firewall rules blocking the port, ISP blocking outbound port 25, the server being down, incorrect hostname or port, or your IP being blacklisted. Start by using a Port Checker to verify the port is accessible, then check your DNS to confirm the correct mail server hostname.
