Email to IP Tracer

Paste email headers to extract the originating sender IP address and look up its geographic location, ISP, and organization. This tool helps you identify where a suspicious email actually came from — not just what the "From" address claims.

Paste Email Headers

What Is Email IP Tracing?

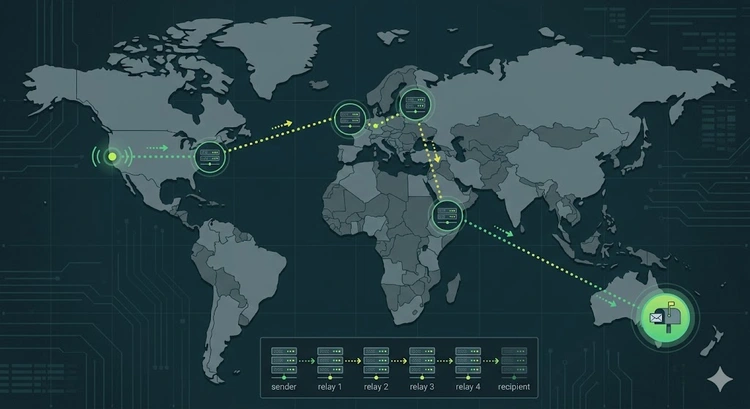

Email IP tracing is the process of extracting the sender's originating IP address from email headers and using that IP to determine the geographic location and network of the sender. Every email contains hidden metadata — headers — that record each server the message passed through during delivery. By analyzing these headers, you can identify where the email actually originated, regardless of what the "From" address shows.

This is particularly useful for identifying phishing emails, spam, and spoofed messages. While the display "From" address can be easily faked, the IP addresses recorded in Received headers are much harder to forge. Once you have the sender's IP, you can look it up with our IP Address Lookup tool or check your own address with What Is My IP.

How Email IP Tracing Works

The tracing process involves three steps:

Extract headers — Get the raw email headers from your email client (Gmail: "Show original", Outlook: "View message details").
Identify the originating IP — Find the first public IP in the Received chain (reading bottom to top) or the X-Originating-IP header.
Look up the IP — Query a geolocation database to find the IP's country, city, ISP, and organization.

The tool above automates all three steps. For a more detailed header analysis including SPF/DKIM results and routing delays, use our Email Header Analyzer.

Understanding IP Sources in Email Headers

Header	What It Reveals	Reliability
`X-Originating-IP`	Sender's actual IP (when added by provider)	High — added by server, hard to forge
First `Received` (bottom)	IP of the first server in the chain	High — added by receiving server
Subsequent `Received`	Intermediate relay servers	Medium — could be internal or third-party
`From` header	Display sender address	Low — easily spoofed by sender
`Reply-To`	Requested reply address	Low — often different from actual sender

Pro Tip: When tracing a suspicious email, focus on the X-Originating-IP header first — it directly shows the sender's IP if the mail provider includes it (Microsoft and Yahoo typically do). If that header isn't present, work through the Received headers bottom-to-top and ignore any private/internal IPs (10.x.x.x, 172.16-31.x.x, 192.168.x.x). The first public IP is usually the sender's mail server. Check any suspicious IP with our IP Lookup.

Private vs Public IP Addresses in Headers

Email headers often contain a mix of private and public IP addresses. Understanding the difference is critical for accurate tracing:

IP Range	Type	Meaning in Headers
10.0.0.0 – 10.255.255.255	Private (RFC 1918)	Internal mail server relay
172.16.0.0 – 172.31.255.255	Private (RFC 1918)	Internal network hop
192.168.0.0 – 192.168.255.255	Private (RFC 1918)	Local network (often first hop)
127.0.0.0 – 127.255.255.255	Loopback	Same-server processing
Everything else	Public	Externally routable — traceable

Private IPs cannot be geolocated because they exist only within internal networks. Learn more about private IP addressing in our What Is an IP Address guide, and understand how NAT translates between private and public addresses on your router.

Note: Many modern email providers (especially Gmail) strip or obscure the sender's originating IP from headers for privacy reasons. In these cases, you'll only see Google's own server IPs in the Received chain, making it impossible to trace the actual sender. This is a deliberate privacy feature, not a limitation of the tracing technique.

Common Email Tracing Scenarios

Here are typical situations where email IP tracing is useful:

Phishing detection — A message claims to be from your bank but the originating IP is in a different country. Use our IP Lookup to verify.
Spam investigation — Identify the sending network to report abuse or block the IP range in your gateway firewall.
Business email compromise — Verify that emails from colleagues actually came from your corporate network, not an external attacker.
Harassment tracking — Document the sender's approximate location for law enforcement reports.
Delivery troubleshooting — Identify which server in the chain caused a delivery delay or failure. Use our Ping Test to check server responsiveness.

Limitations of Email IP Tracing

While email IP tracing is a powerful diagnostic tool, it has important limitations:

VPN and proxy usage — Senders using a VPN will show the VPN server's IP, not their actual location. See our guide on how people hide their browsing from ISPs.
Provider IP stripping — Gmail, iCloud, and some other providers remove the sender's originating IP from headers.
Shared IPs — Many mail services use shared sending IPs, so the IP may represent the service, not the individual sender.
Geolocation accuracy — IP geolocation is typically accurate to city level for fixed connections but may be less precise for mobile networks.
Spoofed Received headers — While difficult, a sophisticated attacker can add fake Received headers. Always start from the most trusted (top-most) headers added by known mail servers.

Protecting Your Own IP When Sending Email

If you're concerned about your IP being traced from emails you send, consider these measures:

Use a major email provider — Gmail, Outlook.com, and iCloud strip originating IPs from headers.
Use a VPN — When using email clients that expose your IP, a VPN masks your actual location.
Use webmail — Web-based email clients generally don't include your device's IP; desktop IMAP/POP3 clients sometimes do.
Secure your network — Secure your home WiFi and update your router firmware to prevent unauthorized access.

Key Takeaways

Email IP tracing extracts the sender's originating IP from email headers and geolocates it.
The X-Originating-IP header (when present) is the most direct indicator of the sender's IP.
Read Received headers bottom-to-top — the first public IP is usually closest to the sender.
Private IPs (10.x, 172.16-31.x, 192.168.x) in headers represent internal server hops and cannot be geolocated.
Gmail and some providers strip sender IPs for privacy — tracing may not always reveal the actual sender.
VPNs, proxies, and shared IPs can mask the true sender location.

Video: How to Trace an Email to Its Source

Related Tools and Guides

Frequently Asked Questions

Can you trace an email back to the sender?

In many cases, yes. Email headers contain IP addresses of the servers that handled the message, and sometimes the sender's originating IP. However, if the sender used Gmail, a VPN, or other privacy-protecting services, the trace may only reveal the email provider's servers, not the sender's actual location.

How accurate is email IP geolocation?

IP geolocation is typically accurate to the city level for wired/broadband connections and country level for mobile networks. It identifies the ISP and approximate location, but not the exact street address. Accuracy varies by IP database provider and whether the IP belongs to a VPN, hosting company, or residential connection.

Can Gmail emails be traced?

Gmail strips the sender's originating IP address from email headers for privacy. When you trace a Gmail email, you'll only see Google's server IPs (in the 209.85.x.x or 172.253.x.x range), not the sender's actual IP or location. This is by design to protect user privacy.

What is the X-Originating-IP header?

X-Originating-IP is an email header added by some mail providers (notably Microsoft/Outlook and Yahoo) that contains the actual IP address of the device used to send the email. It's the most direct way to identify a sender's IP when it's present, but not all providers include it.

Can email tracing identify a specific person?

No. Email IP tracing identifies the network and approximate geographic location of the sender, not a specific individual. The IP typically belongs to an ISP, company, or VPN service. Only the ISP can match an IP to a specific subscriber, and they require a legal order to do so.

How do I protect my IP when sending emails?

Use a major webmail provider like Gmail or Outlook.com, which strips your IP from headers. If using a desktop email client, connect through a VPN to mask your actual IP address. Also ensure your home network is secured to prevent unauthorized email sending from your connection.
