by Tommy N. Updated Apr 12, 2026
A firewall is your home network's first line of defense against cyber threats. Learning how to setup router firewall protection correctly can block unauthorized access, prevent malware from communicating with command servers, and stop hackers from exploiting open ports. Every modern router includes a built-in firewall, but it's not always enabled or configured optimally out of the box.
In this guide, you'll learn what types of firewalls exist in home routers, how to enable and configure them on major router brands, and which settings provide the best protection. Whether you're using a Netgear Nighthawk, TP-Link Archer, ASUS ROG, or Linksys router, we've got brand-specific instructions. If you need to access your router's settings first, log in at 192.168.1.1 or 10.0.0.1.
A router firewall monitors all network traffic flowing between your home network and the internet. It inspects data packets and applies rules to determine which traffic should be allowed through and which should be blocked. Think of it as a security guard at the gate of your network, checking the credentials of every packet trying to enter or leave.
Without a firewall, your network devices are directly exposed to the internet. Any service running on your computers, smart home devices, or servers would be accessible to anyone on the internet who discovers your IP address. The firewall creates a barrier that blocks unsolicited incoming connections while allowing your legitimate outgoing requests and their responses to pass through. Understanding how NAT works helps you appreciate the firewall's role, since NAT itself provides a basic form of protection by hiding internal IP addresses.
Home routers typically implement one or more types of firewall technology. Understanding these helps you make informed configuration decisions.
| Firewall Type | How It Works | Protection Level | Common In |
|---|---|---|---|
| NAT Firewall | Hides internal IPs behind one public IP; drops unsolicited inbound packets | Basic | All routers |
| SPI (Stateful Packet Inspection) | Tracks connection states; only allows responses to outgoing requests | Good | Most consumer routers |
| Application Layer Firewall | Inspects packet contents for known threats and protocol violations | Very Good | Premium routers (ASUS AiProtection, Netgear Armor) |
| Intrusion Prevention System (IPS) | Detects and blocks known attack patterns in real time | Excellent | Business routers, premium consumer routers |
Many people confuse firewalls and antivirus software, but they serve different purposes and both are necessary for comprehensive security. Here's how they compare.
| Feature | Router Firewall | Antivirus Software |
|---|---|---|
| Protection scope | Entire network | Individual device |
| What it blocks | Unauthorized network connections | Malware, viruses, trojans |
| Where it operates | Network perimeter (router) | On each device |
| Traffic inspection | Packet headers and connection states | File contents and behavior |
| Updates needed | Firmware updates | Daily signature updates |
| Performance impact | Minimal (hardware-based) | Can slow down devices |
The best security strategy uses both: the router firewall blocks threats at the network level before they reach your devices, while antivirus software catches anything that slips through, such as malware downloaded through encrypted HTTPS connections that the firewall can't inspect.
Netgear routers include SPI firewall capabilities and, on Nighthawk and Orbi models, advanced threat protection through Netgear Armor (powered by Bitdefender).

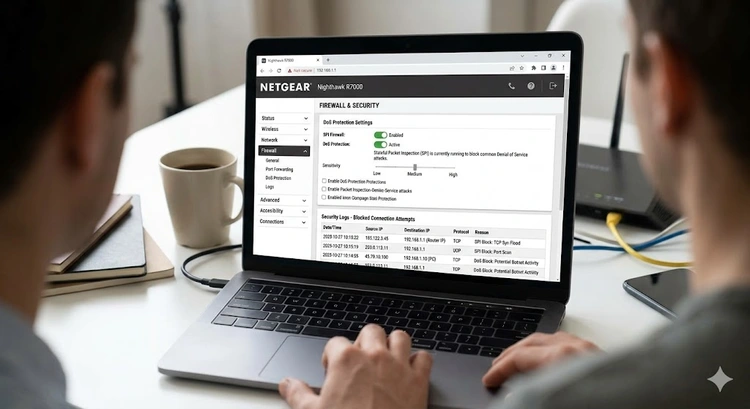

Log into your Netgear router at 192.168.1.1 or routerlogin.net. Navigate to Advanced > Security > Firewall. Enable the SPI Firewall by checking the box. Under the same section, configure these additional settings:
Enable Disable Port Scan and DoS Protection — despite the confusing name, this option blocks port scanning and denial-of-service attacks. Check the boxes for Drop fragmented IP packets to prevent fragmentation attacks. Under Default DMZ Server, ensure no device is listed unless you specifically need one. Review the Port Forwarding section and remove any rules you didn't create. If you need to forward ports for specific applications, follow our guide on how to set up port forwarding securely.
TP-Link routers offer SPI firewall protection along with several additional security features depending on the model.
Access your TP-Link router at 192.168.0.1 or tplinkwifi.net. For newer models with the Tether app or web interface, go to Advanced > Security > Firewall. Enable SPI Firewall. Then navigate to Security > Access Control to manage which devices can access your network.
TP-Link's HomeCare feature (available on Archer models) provides additional protection including real-time threat detection, malicious site blocking, and intrusion prevention. Enable it through the Tether app under the HomeCare tab. The DHCP settings on your TP-Link router can also be configured to limit IP assignment to known devices only.
ASUS routers offer some of the most comprehensive firewall features in the consumer market through their AiProtection suite, powered by Trend Micro.
Log into your ASUS router at 192.168.1.1 or router.asus.com. Navigate to Advanced Settings > Firewall in the left menu. On the General tab, set Enable Firewall to Yes. Enable Enable DoS protection and set Logged packets type to "Both" to track dropped incoming and outgoing packets.
Navigate to the AiProtection tab and enable all three protection layers: Malicious Sites Blocking, Two-Way IPS, and Infected Device Prevention and Blocking. These features provide application-layer inspection that catches threats the basic SPI firewall would miss. ASUS also lets you configure custom DNS servers for additional content filtering.
Linksys routers include SPI firewall protection along with IP and port filtering capabilities.
Access your Linksys router at 192.168.1.1. Navigate to Security > Firewall. Enable SPI Firewall. Also check the boxes for IPv6 firewall if your ISP provides IPv6 connectivity. Under the Internet Filters section, enable Filter Anonymous Internet Requests (blocks ping from WAN), Filter Multicast, Filter Internet NAT Redirection, and Filter IDENT (Port 113).
For more granular control, use the Apps and Gaming > Single Port Forwarding section to configure specific port rules instead of relying on UPnP. Check your gateway settings to ensure proper routing configuration alongside your firewall rules.
Understanding what each firewall setting does helps you make the right configuration choices for your specific situation.
SPI tracks the state of network connections and only allows incoming packets that match an existing outgoing connection. This means that if you visit a website, the firewall allows the website's response back in, but blocks random incoming traffic that wasn't requested. Always keep SPI enabled — there's no legitimate reason to disable it.
DoS (Denial of Service) protection detects and blocks flooding attacks designed to overwhelm your router with traffic. It monitors for patterns like SYN floods, ICMP floods, and UDP floods. Enable this feature to prevent attackers from taking your internet connection offline.
Port filtering lets you block specific ports from being accessed. For example, you might block port 23 (Telnet) to prevent remote Telnet connections. IP filtering lets you block traffic to or from specific IP addresses or ranges. These features are useful for advanced users who want granular control over their network traffic.
VPN passthrough allows VPN traffic (PPTP, L2TP, IPSec) to pass through the firewall. This is necessary if you use a VPN client on devices behind the router. Keep VPN passthrough enabled if you use any VPN services. If you want to run a VPN server on your router, see our guide on how to set up a VPN on your router.
The short answer is: never. There is virtually no scenario where disabling your router's firewall is the right solution. Some users disable it when they have trouble with online gaming, video conferencing, or peer-to-peer applications, but the correct fix is always to configure proper port forwarding rules or adjust specific firewall settings rather than removing all protection.
The only partial exception involves VPN passthrough settings. If your VPN isn't connecting, you may need to enable VPN passthrough for the specific protocol your VPN uses (IPSec, L2TP, or PPTP). This isn't disabling the firewall — it's creating a specific exception for legitimate encrypted traffic. You should also consider setting up a static IP address for devices that need consistent port forwarding rules, and DDNS if you need reliable remote access.
Pro Tip: If you're troubleshooting connectivity issues, check your firewall logs first. Most routers display logs showing which packets were blocked and why. This information tells you exactly which rule is blocking your traffic so you can create a targeted exception instead of disabling the entire firewall.
Yes, virtually all modern home routers include at least a NAT firewall and most include SPI (Stateful Packet Inspection) as well. However, these features may not be enabled by default on all models, so you should verify your settings.
A router firewall provides essential network-level protection, but it's not sufficient on its own. You should also use antivirus software on your devices, keep everything updated, use strong passwords, and follow security best practices for a layered defense strategy.
SPI firewall processing adds negligible latency — typically less than one millisecond. Modern router processors handle firewall rules efficiently, and you won't notice any speed difference in normal usage, including gaming and streaming.
A NAT firewall simply hides internal IP addresses and drops unsolicited incoming packets. An SPI firewall goes further by tracking the state of every connection, verifying that incoming packets match legitimate outgoing requests, and detecting protocol anomalies.
Yes. Running both provides defense in depth. The router firewall blocks threats at the network perimeter, while Windows Firewall provides device-level protection. They complement each other and don't conflict or cause performance issues.
Access your router's admin panel and look for Logs, System Log, or Security Log sections. These logs show blocked connections, including the source IP, destination port, and reason for blocking. Review them periodically to identify potential attack patterns.
Yes, you can place a dedicated hardware firewall between your modem and router for additional protection. Devices like Firewalla, pfSense appliances, or Ubiquiti's security gateways offer enterprise-grade firewall features for home use.
Setting up your router's firewall is one of the most important steps you can take to protect your home network. Combined with strong passwords, updated firmware, and proper network segmentation, a properly configured firewall makes your network significantly harder to compromise. For a deeper technical understanding of firewall behavior, review the IETF RFC 2979 which defines firewall requirements for internet standards.
 |
 |
 |
 |
